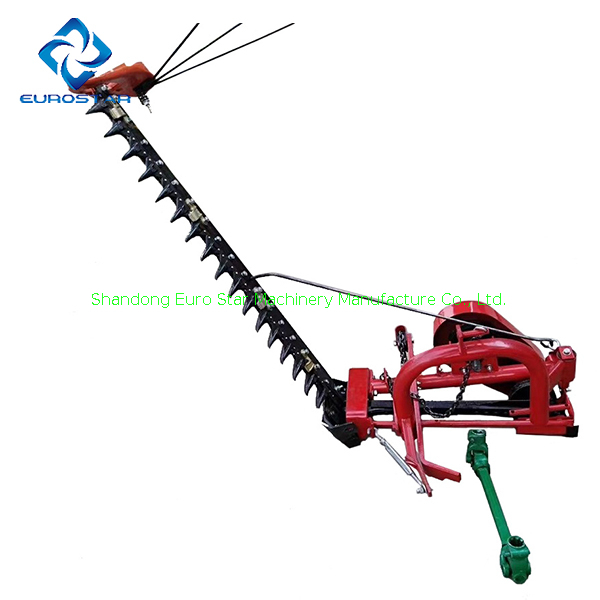

9GW Rotary Sickle Mower

9GW series Reciprocating Lawn Mower
9GW series Rear-fixed mounted reciprocating-type Mower matched with four-wheel tractor range from 15~70 HP. The machine uses biased crank connected bar structure to drive blades to work.It is suitable to be used to reap natural forage grass and plant herbage, alfalfa, reed, grass feed etc. in level grass land for agricultural, forest and pasturing area, and in different condition grass land in the sloping field and hills area. It uses the tractor's power output shaft to promote the mower's movement of blade, used the three-points suspension structure to make the machine rise and fall, operate the power output structure (Operate the Clutch of tractor) to realize the moving and stopping of blades.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
9GW Rotary Sickle Mower
9GW Rotary Sickle Mower
9GW Rotary Sickle Mower
9GW Rotary Sickle Mower
9GW Rotary Sickle Mower
9GW Rotary Sickle Mower
  • 9GW-1.4 9GW-1.8 9GW-2.1

  • EUROSTAR OEM

  • 8433110000

9GW series Reciprocating lawn mower Product Description

9GW series Rear-fixed mounted reciprocating-type Mower matched with four-wheel tractor range from 15~70 HP. The machine uses biased crank connected bar structure to drive blades to work.It is suitable to be used to reap natural forage grass and plant herbage, alfalfa, reed, grass feed etc. in level grass land for agricultural, forest and pasturing area, and in different condition grass land in the sloping field and hills area. It uses the tractor's power output shaft to promote the mower's movement of blade, used the three-points suspension structure to make the machine rise and fall, operate the power output structure (Operate the Clutch of tractor) to realize the moving and stopping of blades.

Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.

9GW series Reciprocating lawn mower Product Selling Points

1. The machine uses an offset crank-connecting rod mechanism to drive the cutting knife to operate.

2.tractor power output shaft drives the cutting movement of the cutter.

3. the three-point suspension mechanism controls the up and down of the implement, and the tractor power output mechanism (operating the tractor clutch) is manipulated to realize the movement or stop of the cutter.

4. It is used for harvesting and planting natural grass. Pasture, alfalfa, reed, green fodder, etc.

9GW series Reciprocating lawn mower product technical parameters

Model9GW-1.49GW-1.89GW-2.1
Cutting Height (mm)60-9060-9060-90
Cutting Width (mm)140018002100
Weight (kg)220220240
Working Speed (km/h)5-85-85-8
Diameter (mm)≤38≤38≤63
PTO Speed (rpm)540/760540/760540/760
LinkageThree-Point MountedThree-Point MountedThree-Point Mounted
Matched Power (hp)15-3025-5050-70

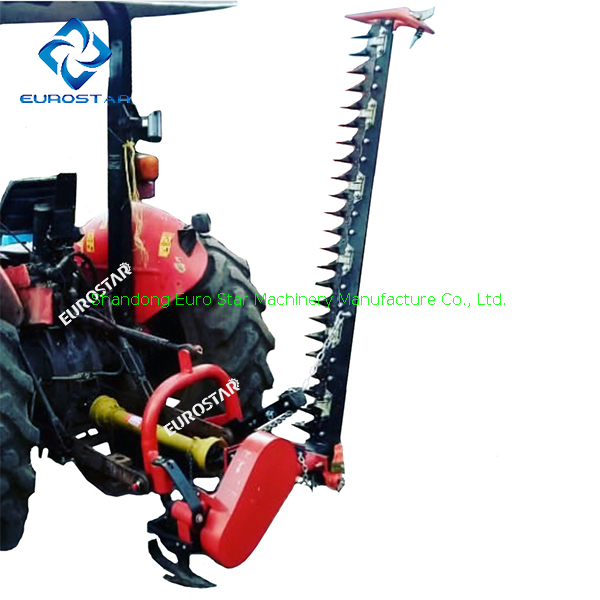

9GW series Reciprocating lawn mower details show

9GW series Reciprocating lawn mower details show

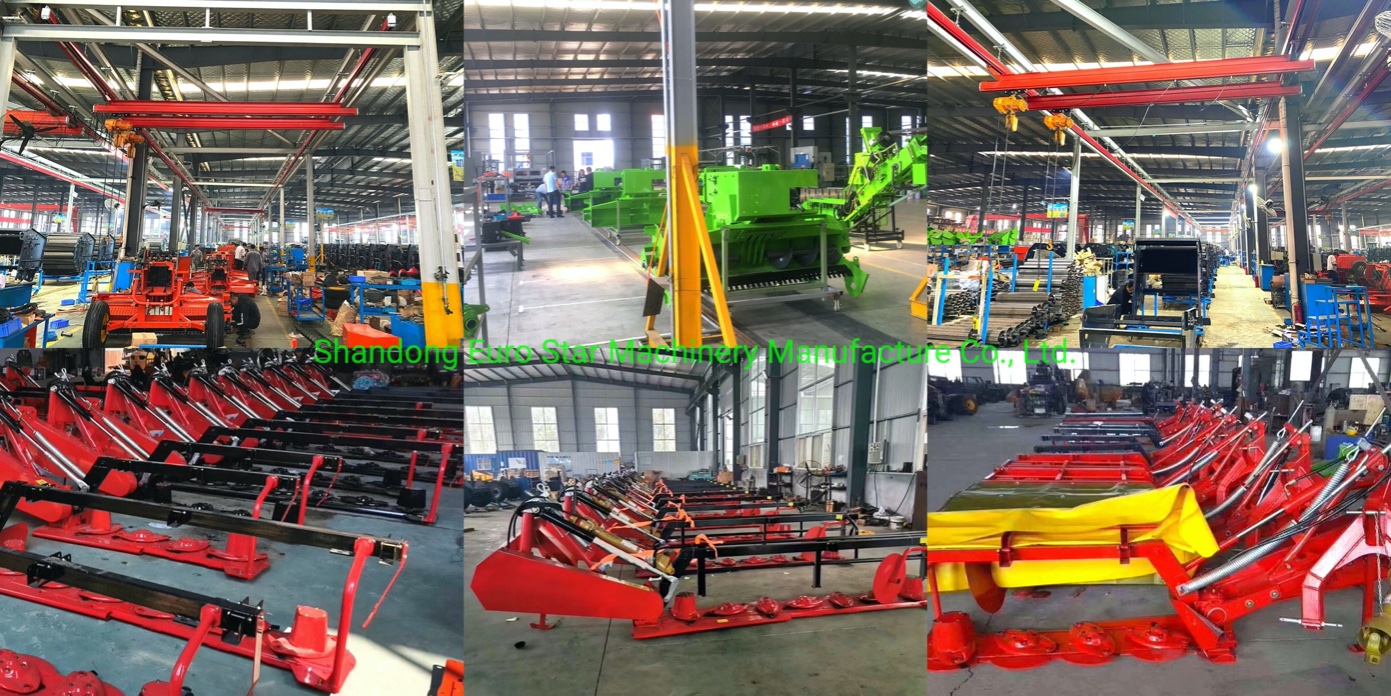

9GW series Reciprocating lawn mower production link

9GW series Reciprocating lawn mower production link

Other series of lawn mowers on display

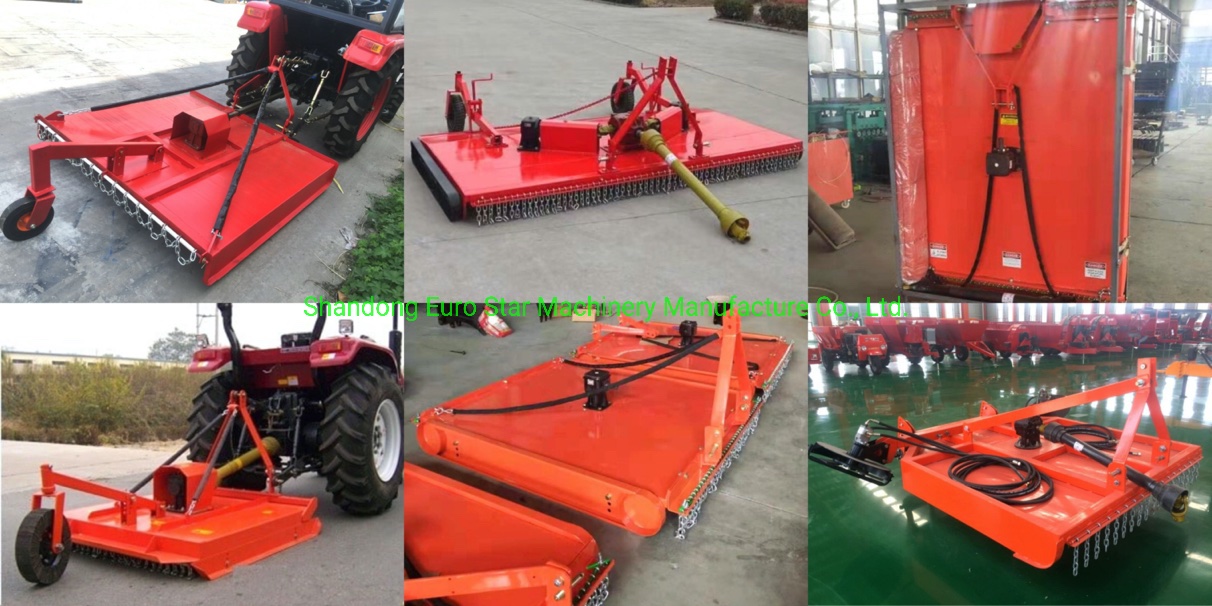

AGFAGL series Hydraulic flip lawn mower  details show (1)

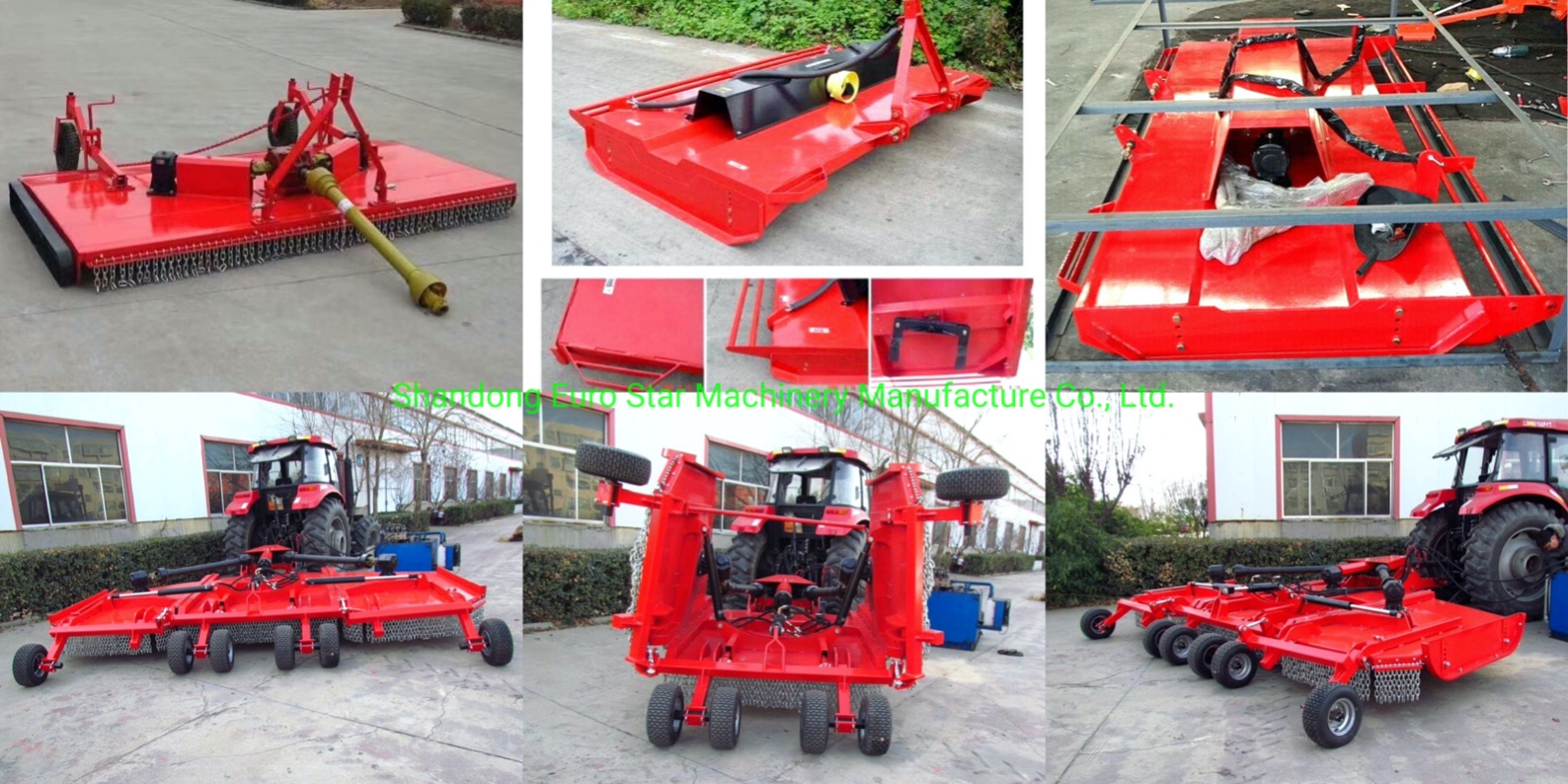

AGFAGL series Hydraulic flip lawn mower  details show-2

Other series of lawn mowers on display

Lawn mower packaging and shipping link display

Lawn mower packaging and shipping link display (1)

Picture display of tractors produced by our company

Picture display of tractors produced by our company

Picture display of tractors produced by our company2

Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional agricultural machinery manufacturer integrating R&D, design, manufacturing, sales and service. The company products cover road transport machinery, harvest machinery, equipment for plant protection, agricultural implements and agricultural unmanned machinery.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has worked out comprehensive quality manual and quality control procedure files at all levels based on ISO9001:2000, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 50 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end
machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

Agricultural machinery factory production equipment display

Agricultural machinery factory production equipment displayService
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified

2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training Service

Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;

4) Technical Support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
