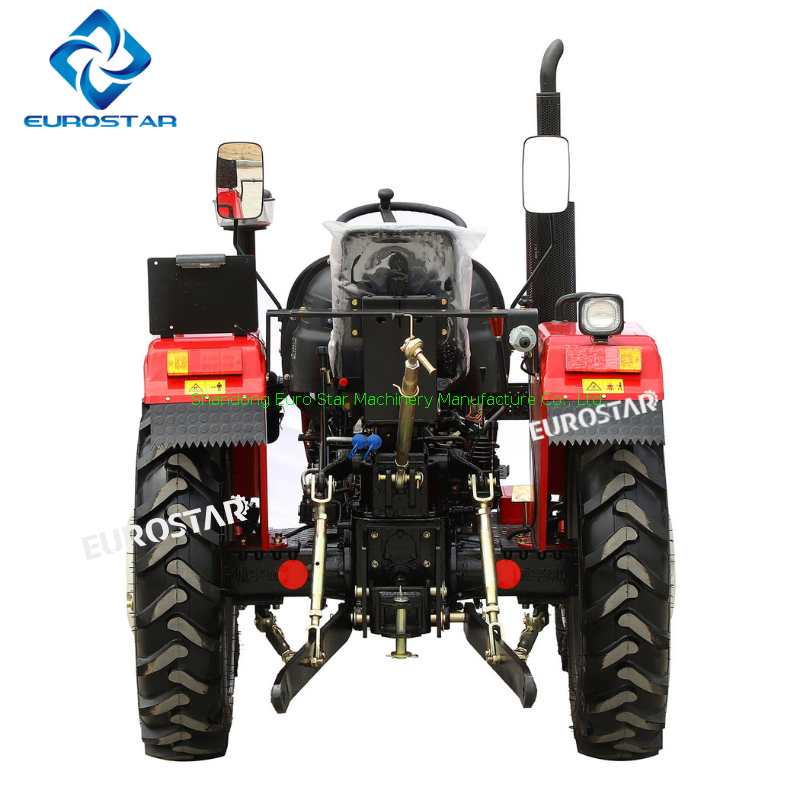

Y 4WD 25HP Mini Orchard Tractor

Y Series small tractor has been adjusted for the overall configuration. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations, small farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe,Balers, trailer, lawn mower, disc plough,rake, spraying machine and rotary cultivator.
Availability:
Quantity:
  • ES2548Y ES3048Y ES3548Y ES4048Y ES5048Y

  • EUROSTAR

  • 8701911000

Y Series small Tractor Product Description

Y Series small tractor has been adjusted for the overall configuration. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations, small farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe,Balers, trailer, lawn mower, disc plough,rake, spraying machine and rotary cultivator.
Y Series small Tractor Product Selling Points
1.Y series of multifunctional tractors, its power cover 25-50 horsepower. Optional Rotary Tiller, Lawn Mower, Baler, Sprayer, etc farm implements.
 2. It adopts 8+2 shift, reasonable speed matching and high working efficiency.
 3. Dry brake is the standard configuration, and oil bath type wet brake is optional which has great breaking force and long service life.
 4. Equipped with famous and high-quality engines, large torque reserve and strong power.Power emission upgrade, more advanced performance, low fuel consumption and high reliability.
 5. Farmland tires, grassland tires and engineering tires are optional to satisfy various operations.
 6.Four driving standard configuration mid steering cylinder front drive axle has the maximum gap from the ground of 335mm.
 7.Suspension seat is the standard configuration which can effectively reduce 40% of vibration.
 8. The famous brand front drive axle is highly reliable.The transmission system adopts strong gears, which is more durable.
 9. Adopting a new type of high pressure lifter makes the work more convenient and flexible.Equipped with external double oil cylinders , the working effect is better.
10.The power output speed can be selected from various speeds such as 540/720 rpm, and can be matched with a variety of agricultural machinery and tools, and the scope of application is wider.
11. Classic detachable cab.Full hydraulic steering system, easy to operate and flexible.The new streamlined body design has a beautiful appearance and a wider field of vision.

Y series small tractor product technical parameters
ModelES2548YES3048YES3548YES4048YES5048Y
Engine power(HP)25HP30HP35HP40HP50HP
Driven model4WD4WD4WD4WD4WD
EngineLAIDONG KM385BTLAIDONG KM390BTLAIDONG 4L22BTLAIDONG 4L23LAIDONG 495BT
Emission StandardsII stagesII stagesII stagesII stagesII stages
Engine Type3-cylinder, in-line, water cooled, four stroke4-cylinder, in-line, water cooled, four stroke
Engine rated speed(r/min)24002400240024002400
Clutch Single-stage typeSingle-stage typeSingle-stage typeSingle-stage typeSingle-stage type
PTO speed 540/720rpm540/1000rpm540/720rpm540/720rpm540/720rpm
Max.rated drawing power  KN≥6KN≥6.5KN≥7KN≥8KN≥8.5KN
Weight (KG)1290 KG1290 KG1310 KG1310 KG1380 KG
Steeringhydraulic steeringhydraulic steeringhydraulic steeringhydraulic steeringhydraulic steering
Minimum turning radius(M)3.53.53.53.53.5
Gears 8F+2R8F+2R8F+2R8F+2R8F+2R
Speed(km/h)F 2.06-31.30
R 2.71-12.52
F 2.06-31.30
R 2.71-12.52
F 2.06-31.30
R 2.71-12.52
F 2.06-31.30
R 2.71-12.52
F 2.06-31.30
R 2.71-12.52
Tires sizeF 6.0-16/R 9.5-24F 6.0-16/R 9.5-24F 6.0-16/R 9.5-24F 6.0-16/R 9.5-24F 6.0-16/R 9.5-24
Wheel Base (mm)1680mm1745mm1780mm1780mm1800mm
Front wheel track(mm)1050-1300mm1050-1300mm1050-1300mm1050-1300mm1050-1300mm
Rear wheel track(mm)1100-1300mm1100-1300mm1100-1300mm1100-1300mm1100-1300mm
mm Overall dimension(L*W*H)3350*1300*2000mm3350*1300*2000mm3350*1300*2000mm3350*1300*2000mm3450*1300*2000mm
Optional equipment:
Front ballastOptionalOptionalOptionalOptionalOptional
Rear ballast(one layer)OptionalOptionalOptionalOptionalOptional
RopsOptionalOptionalOptionalOptionalOptional
CanopyOptionalOptionalOptionalOptionalOptional
1 groups of hydraulic outputOptionalOptionalOptionalOptionalOptional
2 groups of hydraulic outputOptionalOptionalOptionalOptionalOptional
Air brakeOptionalOptionalOptionalOptionalOptional
External Forced lifterOptionalOptionalOptionalOptionalOptional
Swing tractionOptionalOptionalOptionalOptionalOptional
Fan cabOptionalOptionalOptionalOptionalOptional
Heating cabOptionalOptionalOptionalOptionalOptional
Tires 6.5-16/11.2-24OptionalOptionalOptionalOptionalOptional
Iron frame packagingOptionalOptionalOptionalOptionalOptional
Packingframe/one 40 HQ in 16 sets(without cab);     frame/one 40 HQ in 12sets(with cab)

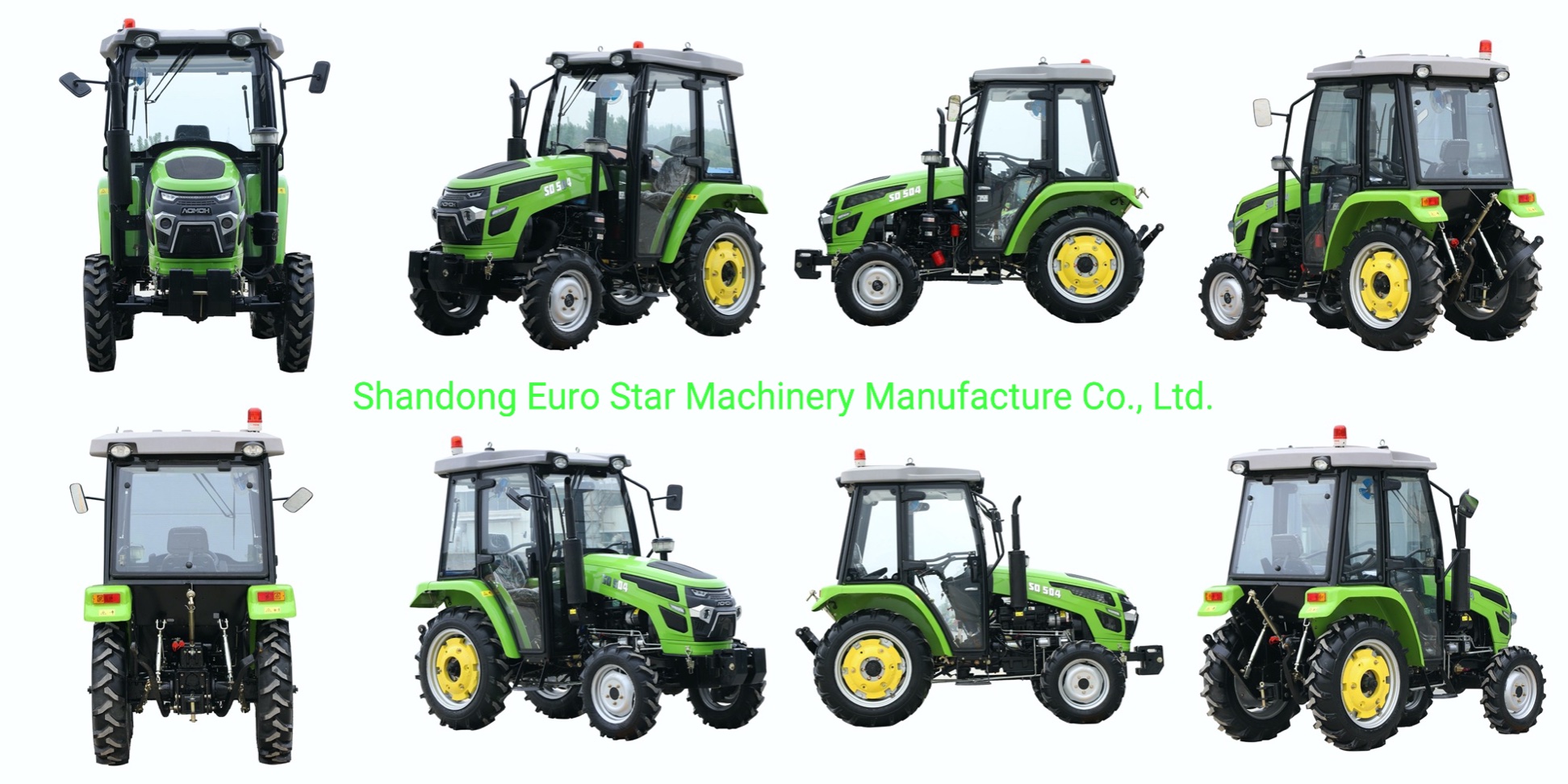

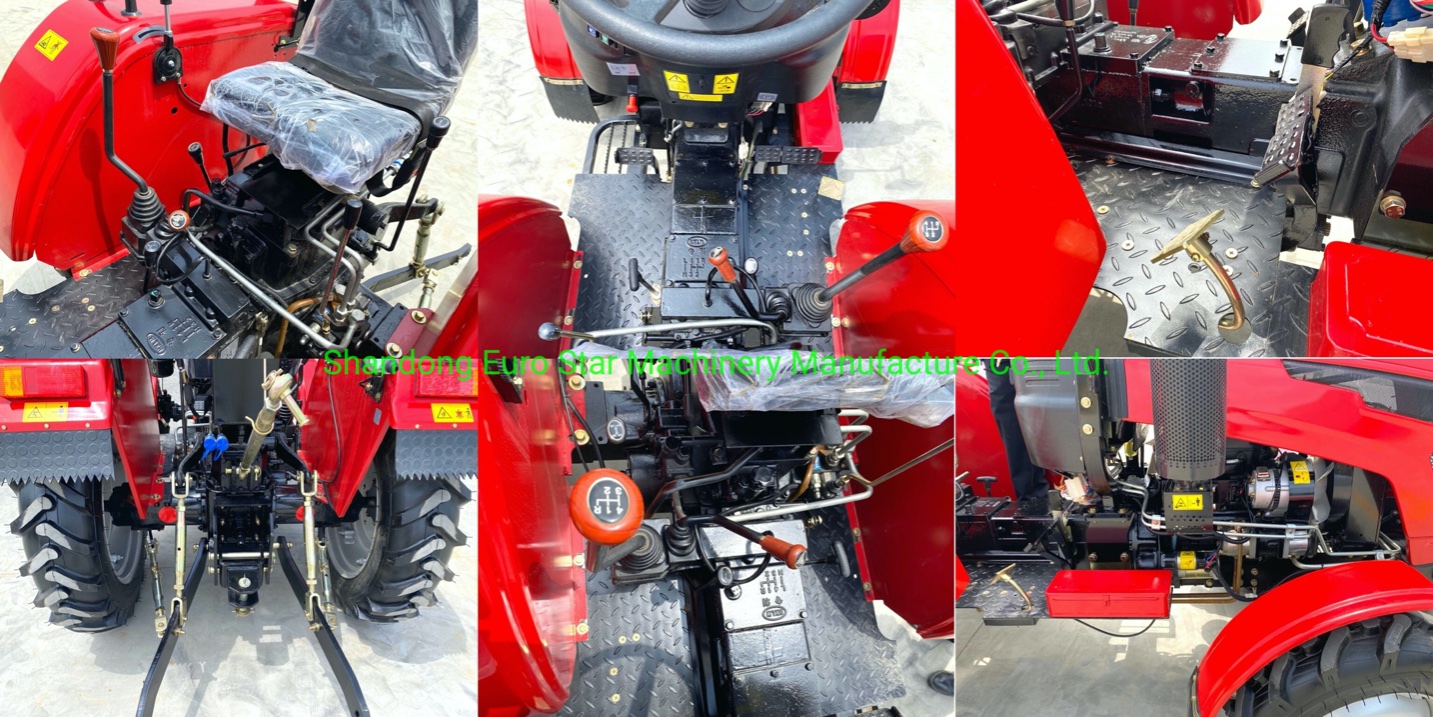

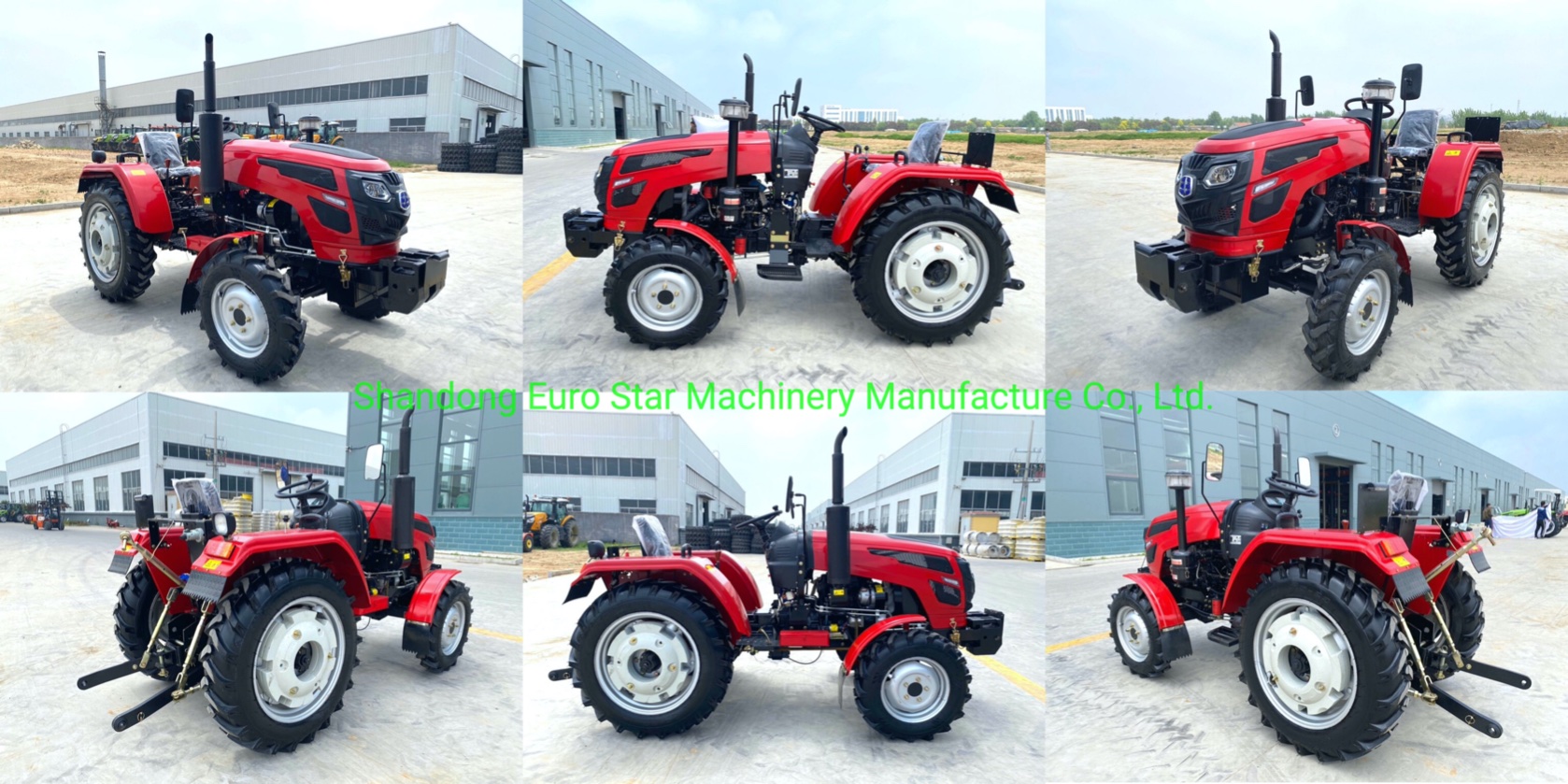

Y series small tractor details show

Y series small tractor details showY series small tractor details show (1)Y series small tractor details show (2)

Full range of tractor products display
Full range of tractor products display

Full range of tractor products display (1)
Y series small tractor SKD packaging and CBU packaging display
G series mini Orchard Tractor SKD packaging and CBU packaging display

Y Series small Tractor Container Display
G series mini Orchard Tractor Container Display

 Y series small tractor supporting farm implements display

G series mini Orchard Tractor supporting farm implements display (1)G series mini Orchard Tractor supporting farm implements display (2)G series mini Orchard Tractor supporting farm implements display (3)G series mini Orchard Tractor supporting farm implements display

 Y series small tractor supporting farm implements display

G series mini Orchard Tractor supporting farm implements display (1)G series mini Orchard Tractor supporting farm implements display (2)G series mini Orchard Tractor supporting farm implements display (3)G series mini Orchard Tractor supporting farm implements display


Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

Tractor production workshop display

tractor workshop

Service

One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.

1) Market Service

Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified

2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training Service

Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;

4) Technical Support

The whole process Technology support covers on sale and after-sale service.

 5) Terms of the deal:

1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:

Why choose us?

1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.

How Shipment?

We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?

A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers. Each machine is carefully tested before send to customer. Warranty time for 1 year or 1200 working hours.

How many units can be put in container?

A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
