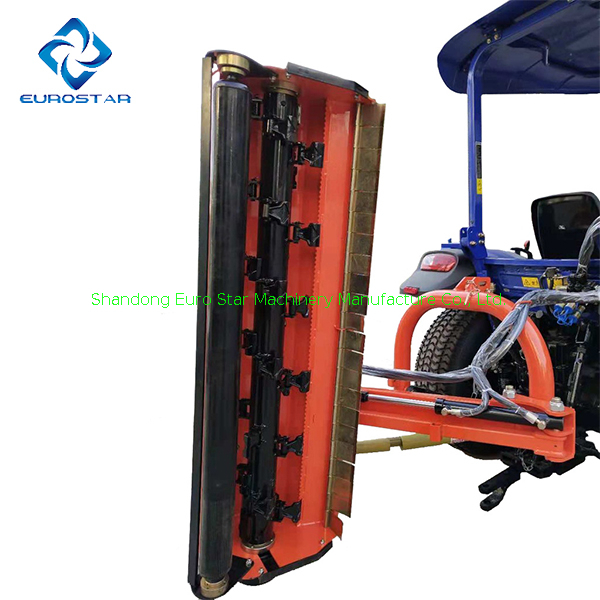

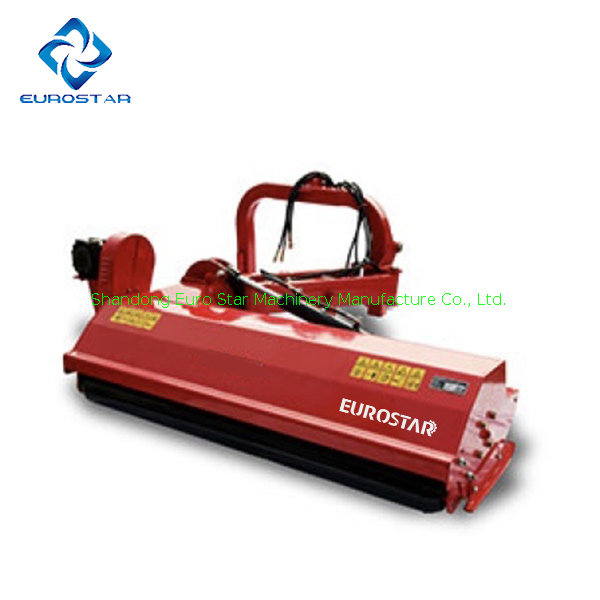

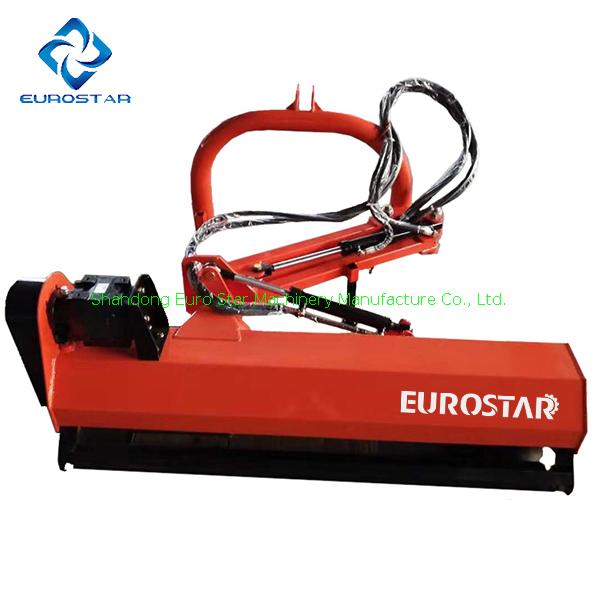

Width 1.25m Hydraulic Flip Lawn Mower

AGF/AGL Series Hydraulic Flip Lawn Mower
AGF/AGL series lawn mower By high-speed rotation of spindle, it is used for mowing in the field, and weeds no more than half a meter. It can turn over its body, for weeds on a slope and side trimming on the trees.
Hydraulic flip mower provide an effective solution for the control of excessive growth. PTO flail mower, also known as mulching mowers, are designed to mow and shred concurrently. The shredded materiall acts as an effective mulch, to retard ensuing growth while providing a medium that will better release nutrients into the soil.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.

Availability:

Quantity:



Inquire

Model:
AGF145 AGF165 AGF185 AGF200 AGF220 AGL125 AGL145
Brand:
EUROSTAR OEM
Code:
8433110000

AGF/AGL series Hydraulic flip lawn mower product description

AGF/AGL series lawn mower By high-speed rotation of spindle, it is used for mowing in the field, and weeds no more than half a meter. It can turn over its body, for weeds on a slope and side trimming on the trees.Hydraulic flip mower provide an effective solution for the control of excessive growth. PTO flail mower, also known as mulching mowers, are designed to mow and shred concurrently. The shredded materiall acts as an effective mulch, to retard ensuing growth while providing a medium that will better release nutrients into the soil.

Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.

AGF/AGL series Hydraulic flip lawn mower Product Selling Points

1. Transmission: By sturdy toothed belts.

2. It has hydraulic cylinders to adjust the right and left movement and turn over the body.

3. Gearbox is made of graphite casting iron. Material performance is better. Not easy broken.

4. After dynamic balance test, the blade axle can run stably at high speed, with lower noise.

5. The blades have more quantity, bigger density and higher mowing efficiency.

6. The roller is equipped with bearing on both ends, so it can run more flexibly, without stronger wearing.

7. Y shape blades and hammers are optional, to meet the needs of different customer.

8. The body can be turned over, so it has a wider range of application.

9. The verge Mowers are suitable for roadside verge, tree trimming and general mulching;

10. Hydraulic side adjustment;

11. Hydraulic inclining adjustment;

AGF series Hydraulic flip lawn mower technical parameters

Model	AGF-145	AGF-165	AGF-185	AGF-200	AGF-220
Dimension(L×W×H)	1800×2225×1020mm	2000×2225×1020mm	2200×2225×1020mm	2400×2225×1020mm	2600×2225×1020mm
Structure Weight	598kg	670kg	750kg	830kg	900kg
Cutting Width	1400mm	1600mm	1800mm	2000mm	2200mm
PTO Turnning Speed	540r/min	540r/min	540r/min	540r/min	540r/min
PTO Spline	6×8×1600mm	6×8×1600mm	6×8×1600mm	6×8×1600mm	6×8×1600mm
Matching Power	40-85HP	50-100HP	60-120HP	80-120HP	100-150HP

AGL series Hydraulic flip lawn mower technical parameters

Model	AGL-125	AGL-145	AGL-165	AGL-185
Dimension(L×W×H)	1480x2225x1020mm	1800×2225×1020mm	2000×2225×1020mm	2200×2225×1020mm
Structure Weight	320kg	340kg	360kg	370kg
Cutting Width	125cm	1400mm	1600mm	1800mm
PTO Turnning Speed	540r/min	540r/min	540r/min	540r/min
PTO Spline	6x6x850	6×8×1600mm	6×8×1600mm	6×8×1600mm
Matching Power	25~40HP	30-50HP	50-80HP	60-100HP
