ES2310
EUROSTAR
8701911000
Model | ES2310 | |||
Engine | Maker | Changchai/ PERKIN S | ||
Model | 3M78/403J | |||
Type | Direct injection, electronic control, high pressure common rail, liquid cooled, 3-cylinder diesel Euro 5 Emission /EPA T4 | |||
Number of cylinders | 3 | |||
Bore and stroke(mm) | 78 x 86 mm | |||
Total displacement(cm) | 1123 cm | |||
Engine gross power*(KW/HP) | 16.9KW / 23.0HP | |||
Rated revolution(rpm) | 2800/rpm | |||
Maximum torque(N-m) | 70 | |||
Battery | 12V/100AH | |||
Capacities | Fuel tank | 23L | ||
Engine crankcase (with filter) | 3.1L | |||
Engine coolant | 3.9L | |||
Transmission case | 12.5L | |||
Dimensions | Overall length (without 3P) | 2410mm | ||
Overall width | 1105mm, 1015mm | |||
Overall height (Top of steering wheel) | 1280mm/1970mm(WITH ROPS) | |||
Wheel base | 1563mm | |||
Min. ground clearance | 325mm | |||
Tread | Front | 815mm | ||
Rear | 810mm, 900mm | |||
Traveling system | Tires | Front | 180 / 85D12 | |
Rear | 8.3-20 | |||
Steering | Integral type power steering | |||
Transmission | Gear shift, 9 forward and 3 reverse | |||
Brake | Wet disk type | |||
Min. turning radius (with brake) | 2.1 M | |||
Weight | 625 KG | |||
Clutch | Dry single plate | |||
Hydraulic unit | Hydraulic control system | Position valve and draft lifter mix | ||
Pump capacity | L / min | 3P: 16.6 Power steering: 9.8 | ||
Three point hitch | IS Category 1, 1N | |||
Max. lift force | At lift points | 750KG | ||
24 in. behind lift point | 480KG | |||
PTO | Rear-PTO | SAE 1-3/8, 6 splines | ||
PTO / Engine speed | rpm | 540 / 2504, 980 / 2510 | ||
PTO power* | KW (HP) | 13.0KW / 17.4HP | ||
Design driving speed Tire size (Rear) 8.3-20-farm | ||||
Designed travel speed | Range gear shift lever | Main gear shift lever | ||
Forward | 1 | Low | 1 | 1 |
2 | 2 | 1.5 | ||
3 | 3 | 2.7 | ||
4 | Middle | 1 | 3.3 | |
5 | 2 | 4.8 | ||
6 | 3 | 8.6 | ||
7 | High | 1 | 7.2 | |
8 | 2 | 10.3 | ||
9 | 3 | 18.7 | ||
Max. Speed 2750 (at engine rpm) | 19.8 | |||
Reverse | 1 | Low | 1 | 1.4 |
2 | Middle | 2 | 4.4 | |
3 | High | 3 | 9.6 | |
Max. Speed 2750 (at engine rpm) | 10.2 |
Model | ES2310 | |||
Engine | Maker | Changchai/ PERKIN S | ||
Model | 3M78/403J | |||
Type | Direct injection, electronic control, high pressure common rail, liquid cooled, 3-cylinder diesel Euro 5 Emission /EPA T4 | |||
Number of cylinders | 3 | |||
Bore and stroke(mm) | 78 x 86 mm | |||
Total displacement(cm) | 1123 cm | |||
Engine gross power*(KW/HP) | 16.9KW / 23.0HP | |||
Rated revolution(rpm) | 2800/rpm | |||
Maximum torque(N-m) | 70 | |||
Battery | 12V/100AH | |||
Capacities | Fuel tank | 23L | ||
Engine crankcase (with filter) | 3.1L | |||
Engine coolant | 3.9L | |||
Transmission case | 12.5L | |||
Dimensions | Overall length (without 3P) | 2410mm | ||
Overall width | 1105mm, 1015mm | |||
Overall height (Top of steering wheel) | 1280mm/1970mm(WITH ROPS) | |||
Wheel base | 1563mm | |||
Min. ground clearance | 325mm | |||
Tread | Front | 815mm | ||
Rear | 810mm, 900mm | |||
Traveling system | Tires | Front | 180 / 85D12 | |
Rear | 8.3-20 | |||
Steering | Integral type power steering | |||
Transmission | Gear shift, 9 forward and 3 reverse | |||
Brake | Wet disk type | |||
Min. turning radius (with brake) | 2.1 M | |||
Weight | 625 KG | |||
Clutch | Dry single plate | |||
Hydraulic unit | Hydraulic control system | Position valve and draft lifter mix | ||
Pump capacity | L / min | 3P: 16.6 Power steering: 9.8 | ||
Three point hitch | IS Category 1, 1N | |||
Max. lift force | At lift points | 750KG | ||
24 in. behind lift point | 480KG | |||
PTO | Rear-PTO | SAE 1-3/8, 6 splines | ||
PTO / Engine speed | rpm | 540 / 2504, 980 / 2510 | ||
PTO power* | KW (HP) | 13.0KW / 17.4HP | ||
Design driving speed Tire size (Rear) 8.3-20-farm | ||||
Designed travel speed | Range gear shift lever | Main gear shift lever | ||
Forward | 1 | Low | 1 | 1 |
2 | 2 | 1.5 | ||
3 | 3 | 2.7 | ||
4 | Middle | 1 | 3.3 | |
5 | 2 | 4.8 | ||
6 | 3 | 8.6 | ||
7 | High | 1 | 7.2 | |
8 | 2 | 10.3 | ||
9 | 3 | 18.7 | ||
Max. Speed 2750 (at engine rpm) | 19.8 | |||
Reverse | 1 | Low | 1 | 1.4 |
2 | Middle | 2 | 4.4 | |
3 | High | 3 | 9.6 | |
Max. Speed 2750 (at engine rpm) | 10.2 |

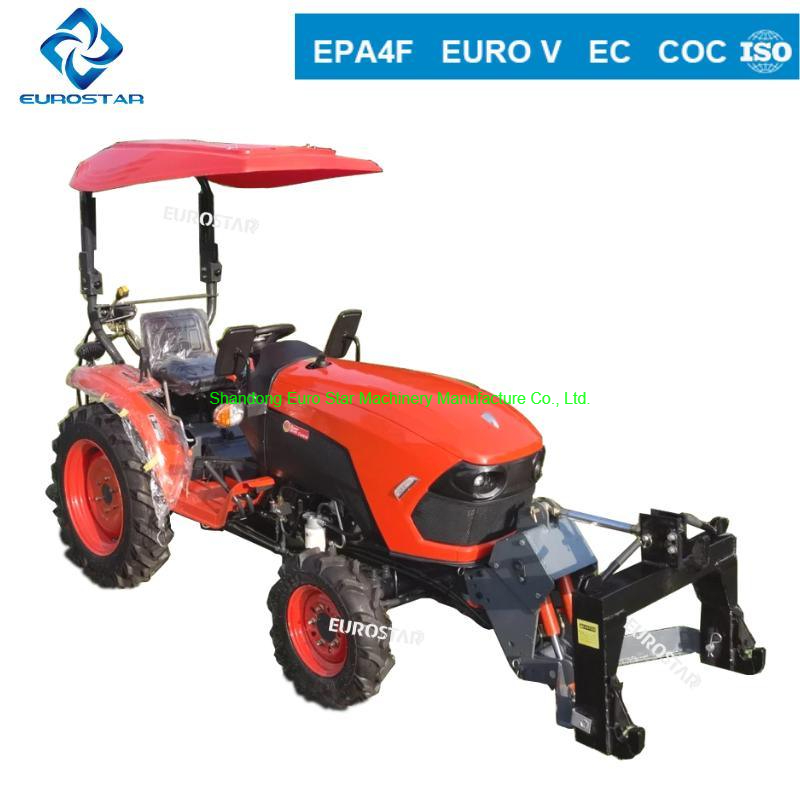

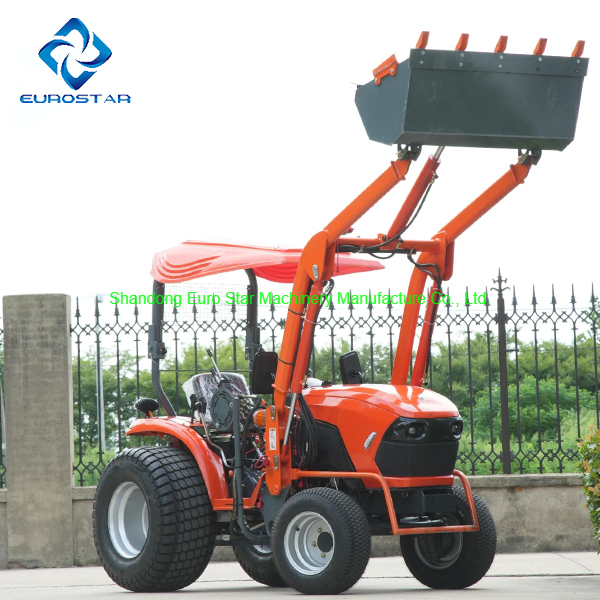

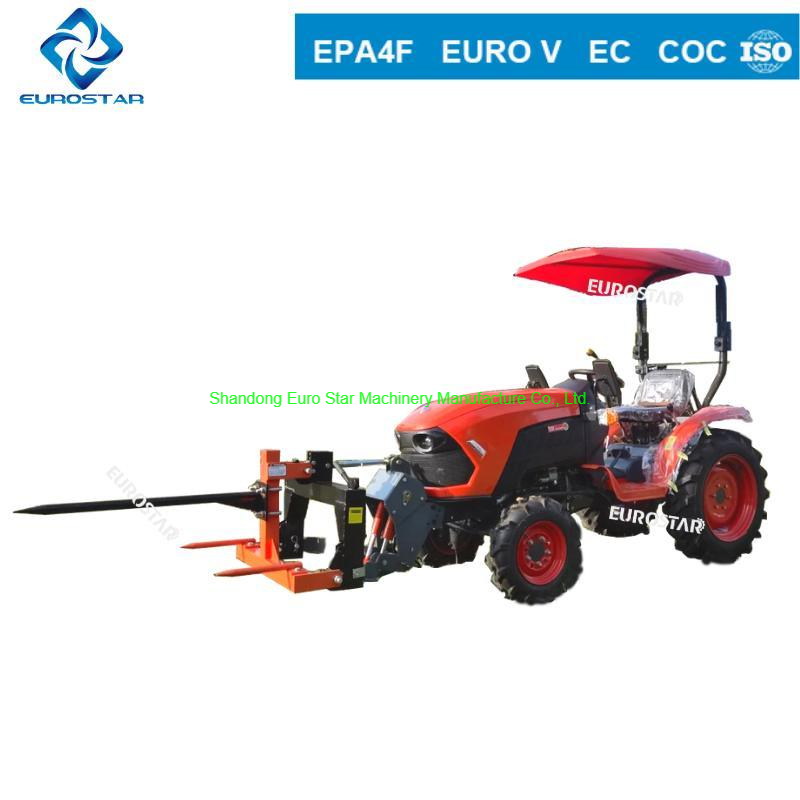

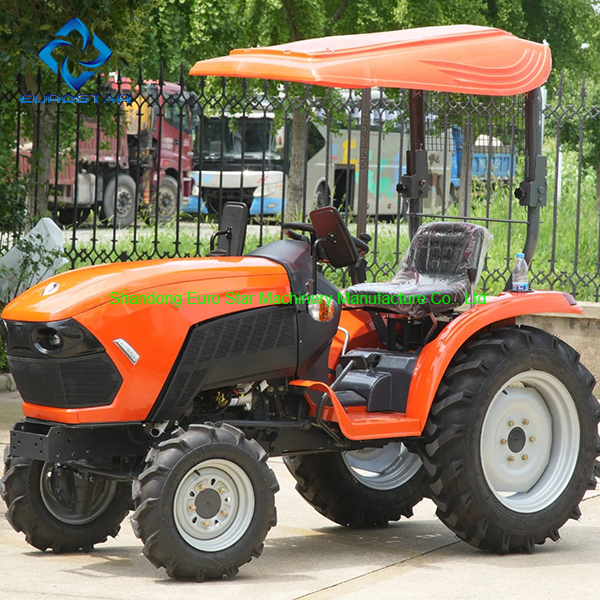

ES2310 series small tractor display
ES2310 series small tractor details show
Full range of tractor products display
ES2310 series small tractor SKD packaging and CBU packaging display
ES2310 series small tractor container display
ES2310 series small tractor display
ES2310 series small tractor details show
Full range of tractor products display
ES2310 series small tractor SKD packaging and CBU packaging display
ES2310 series small tractor container display
Y series small tractor supporting farm implements display
Y series small tractor supporting farm implements display
Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization and industrial production automation. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In the future, the company will adhere to the principles of stable operation, continuous innovation, and open cooperation, create more high-end machinery and equipment on the basis of existing products, and contribute to the global modern agricultural mechanization and industrial production automation.
Tractor production workshop display
Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical Support
The whole process Technology support covers on sale and after-sale service.
5) Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers. Each machine is carefully tested before send to customer. Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
Contact us
Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C.
Web:eurostartractor.en.made-in-china.com
