LD250/LD254/LD300/LD304/LD350/LD354/LD400/LD404
EUROSTAR
87019011
LD series Mini garden tractor
LD Series Mini Tractor Product Description
LD new platform upgrading product, has been adjusted for the overall configuration. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations, small farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations
Main sales territory: regions like Europe, America, Ukraine, South America and Australia
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, hay mower, rake, spraying machine and rotary cultivator.
LD Series Mini Tractor Product Selling Points
1.LD series of multifunctional tractors, its power cover 20-40 horsepower. Optional Rotary Tiller, Lawn Mower, Baler, Sprayer, etc farm implements
2. Standard configuration: 6F+1R gears,Can achieve reverse walking. It is the only tractor in China that operates in reverse.
3.Dry brake is the standard configuration, and oil bath type wet brake is optional which has great breaking force and long service life.
4. Farmland tires, grassland tires and engineering tires are optional to satisfy various operations.
5.Four driving standard configuration mid steering cylinder front drive axle has the maximum gap from the ground of 300mm.
LD series Mini tractor product technical parameters
Model | LD204 | LD254 | LD304 | LD354 | LD404 |
engine power (HP) | 20 | 25 | 30 | 35 | 40 |
Type | 4WD;optional: 2WD | ||||
engine rate (r/min) | 2350 | ||||
outline dimension (mm) | 2400*1140*1200 | 2450*1140*1200 | |||
wheel base (mm) | 1500—1550 | ||||
front wheel tread (mm) | 940—1100 | ||||
rear wheel tread (mm) | 960—1140 | ||||
front wheel tyre | 450-14 | 450-14 | 450-14 | ||
rear wheel tyre | 750-16 | 750-16 | 750-16 | ||
Minimum ground gap (mm) | 260 | 335 | 380 | ||
architecture weight (kg) | 930 | 960 | |||
Gearbox | 6F+1R Gearbox | ||||
clutch | single piece,dry-type,single-action ,Constant combination | ||||
brake system | Mechanical shoe type | ||||
Central drive type (front/rear) | spiral bevel | ||||
differential lock | Tooth type | ||||
Final transmission type (front/rear) | Outer meshing spur gear | ||||
Shunting box type | spur gear/Meshing sleeve shift | ||||
Steering type | Full hydraulic steering | ||||
traction | U type hook | ||||
PTO shaft type | Postposition non-independent type/ 35 Rectangular Splines/ 6 tooth | ||||
PTO Standard speed (r/min) | 540 | ||||
hydraulic out flow | 33.6/min | ||||
Optional configuration and price | 2WD;Air brake;Safety rack awning;Two way hydraulic output;F600-16/R9.5-24;Track drive wheels;SKD iron frame packaging. |
LD series Mini garden tractor
LD Series Mini Tractor Product Description
LD new platform upgrading product, has been adjusted for the overall configuration. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations, small farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations
Main sales territory: regions like Europe, America, Ukraine, South America and Australia
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, hay mower, rake, spraying machine and rotary cultivator.
LD Series Mini Tractor Product Selling Points
1.LD series of multifunctional tractors, its power cover 20-40 horsepower. Optional Rotary Tiller, Lawn Mower, Baler, Sprayer, etc farm implements
2. Standard configuration: 6F+1R gears,Can achieve reverse walking. It is the only tractor in China that operates in reverse.
3.Dry brake is the standard configuration, and oil bath type wet brake is optional which has great breaking force and long service life.
4. Farmland tires, grassland tires and engineering tires are optional to satisfy various operations.
5.Four driving standard configuration mid steering cylinder front drive axle has the maximum gap from the ground of 300mm.
LD series Mini tractor product technical parameters
Model | LD204 | LD254 | LD304 | LD354 | LD404 |
engine power (HP) | 20 | 25 | 30 | 35 | 40 |
Type | 4WD;optional: 2WD | ||||
engine rate (r/min) | 2350 | ||||
outline dimension (mm) | 2400*1140*1200 | 2450*1140*1200 | |||
wheel base (mm) | 1500—1550 | ||||
front wheel tread (mm) | 940—1100 | ||||
rear wheel tread (mm) | 960—1140 | ||||
front wheel tyre | 450-14 | 450-14 | 450-14 | ||
rear wheel tyre | 750-16 | 750-16 | 750-16 | ||
Minimum ground gap (mm) | 260 | 335 | 380 | ||
architecture weight (kg) | 930 | 960 | |||
Gearbox | 6F+1R Gearbox | ||||
clutch | single piece,dry-type,single-action ,Constant combination | ||||
brake system | Mechanical shoe type | ||||
Central drive type (front/rear) | spiral bevel | ||||
differential lock | Tooth type | ||||
Final transmission type (front/rear) | Outer meshing spur gear | ||||
Shunting box type | spur gear/Meshing sleeve shift | ||||
Steering type | Full hydraulic steering | ||||
traction | U type hook | ||||
PTO shaft type | Postposition non-independent type/ 35 Rectangular Splines/ 6 tooth | ||||
PTO Standard speed (r/min) | 540 | ||||
hydraulic out flow | 33.6/min | ||||
Optional configuration and price | 2WD;Air brake;Safety rack awning;Two way hydraulic output;F600-16/R9.5-24;Track drive wheels;SKD iron frame packaging. |

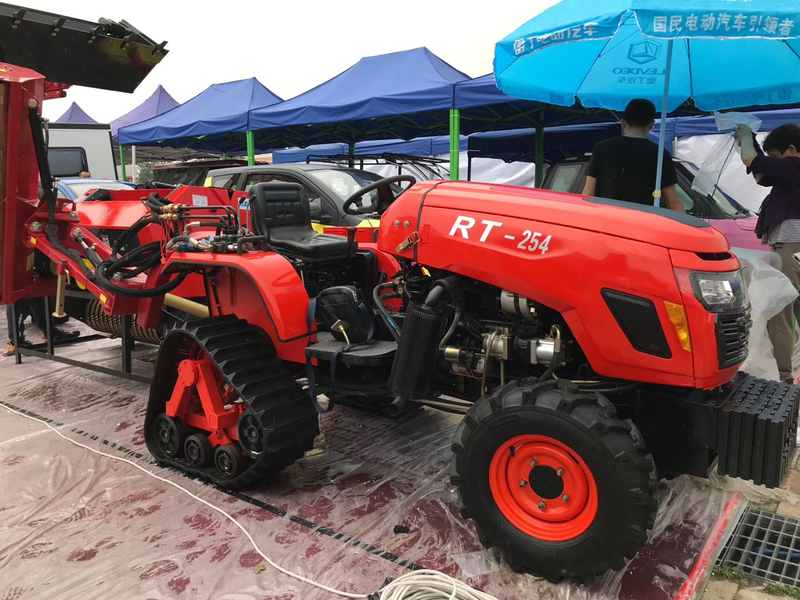

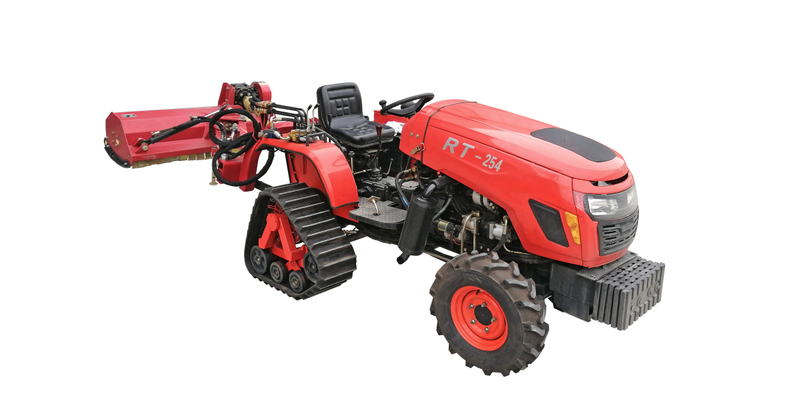

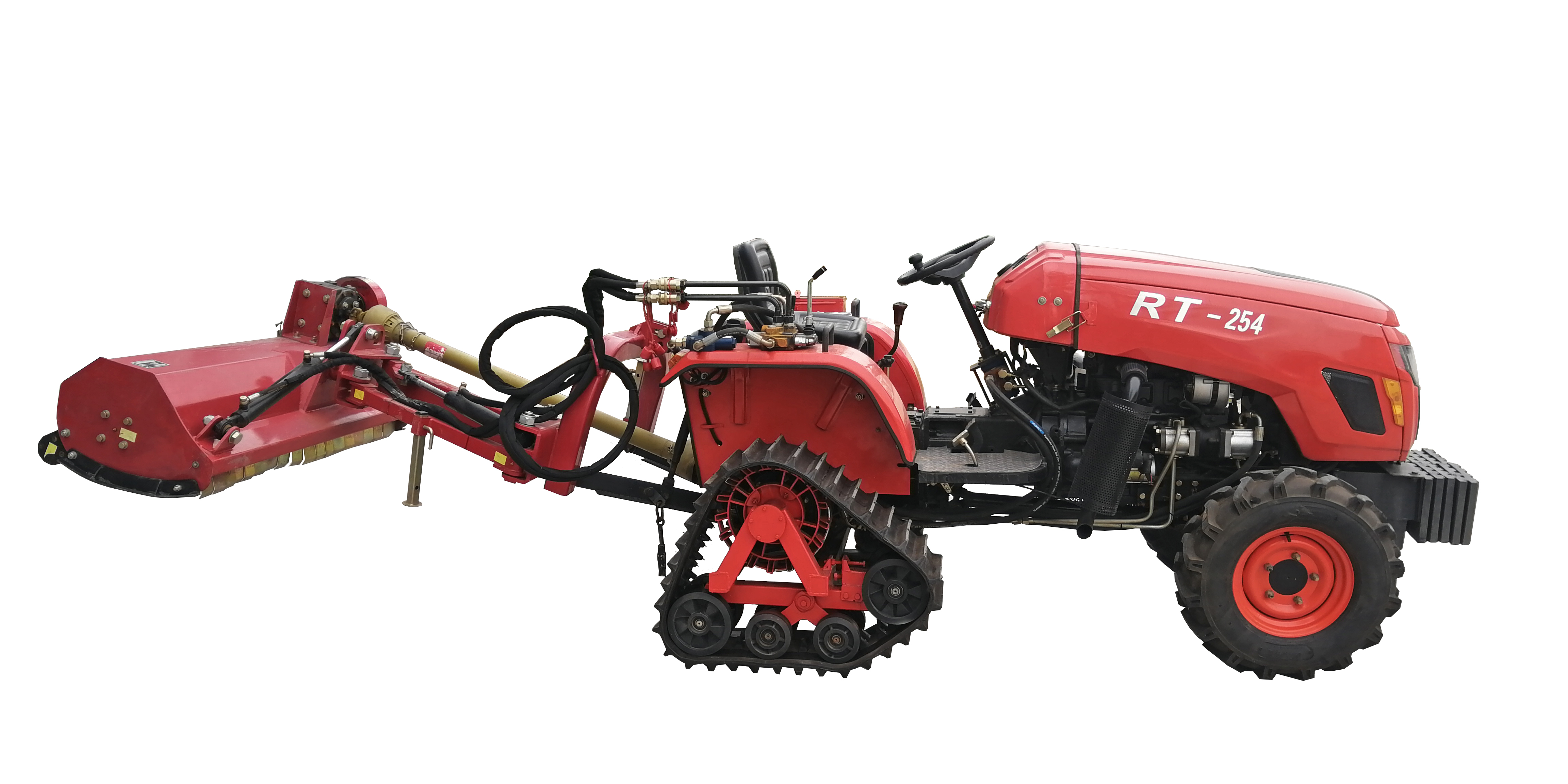

LD Series Track Drive Mini Tractor Show
TL series tire-driven Mini tractor on display
TL\LD series Mini tractor details show
TL \LDseries Mini tractor SKD packaging and CBU packaging display
TL\LD Series Mini Tractor Container Display
LD Series Track Drive Mini Tractor Show
TL series tire-driven Mini tractor on display
TL\LD series Mini tractor details show
TL \LDseries Mini tractor SKD packaging and CBU packaging display
TL\LD Series Mini Tractor Container Display
Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional agricultural machinery manufacturer integrating R&D, design, manufacturing, sales and service. The company products cover road transport machinery, harvest machinery, equipment for plant protection, agricultural implements and agricultural unmanned machinery.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has worked out comprehensive quality manual and quality control procedure files at all levels based on ISO9001:2000, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 50 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end
machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.
Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical Support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
