Highland Gap Spray

Self propelled sprayer with intelligent and accurate spraying system, it can solve problems such as repeated spraying and omission, effectively reduce pesticide usage and production cost. It can be widely used in soil treatment before sowing, seedling herbicides and pest control soybean, wheat, rice, potatoes and other crops and herbs, grass, garden flowers and other plants and other large areas. This model is suitable for variety of pesticides and other herbicide spraying operation.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.

Availability:

Quantity:



Inquire

Model:
3WPZ-100020/ 3WPZ-700B
Brand:
EUROSTAR
Code:
8424490000

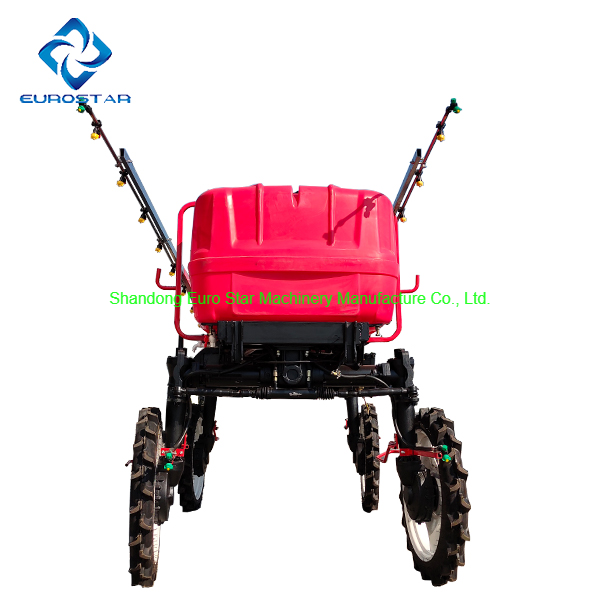

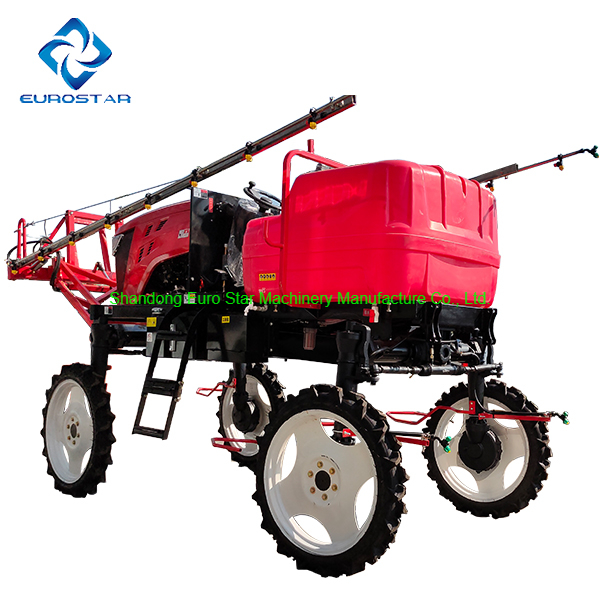

Self Propelled Sprayer
^{Self propelled sprayer with intelligent and accurate spraying system, it can solve problems such as repeated spraying and omission, effectively reduce pesticide usage and production cost. It can be widely used in soil treatment before sowing, seedling herbicides and pest control soybean, wheat, rice, potatoes and other crops and herbs, grass, garden flowers and other plants and other large areas. This model is suitable for variety of pesticides and other herbicide spraying operation.}
_{Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.}

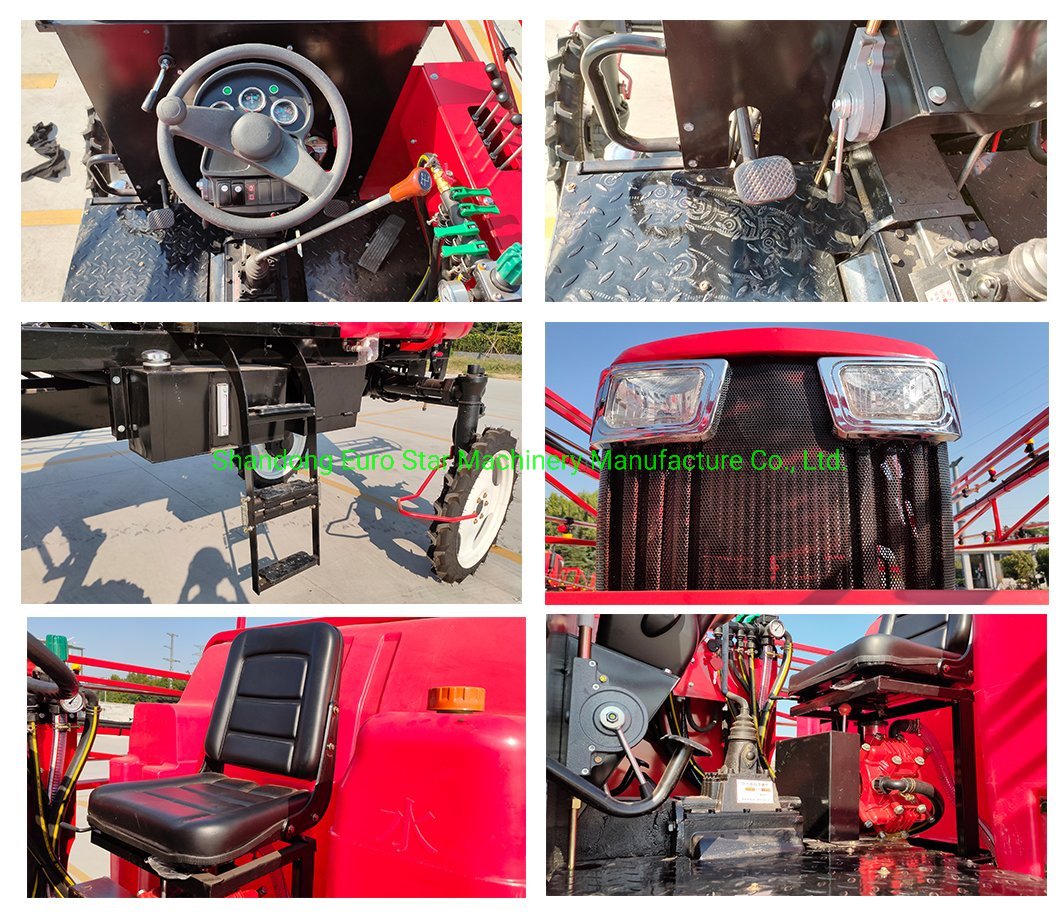

Self Propelled Sprayer product selling points
^{1)Highland gap spray rod spraying machine with engine and four-wheel all-wheel-drive, track width adjustable, hydraulic lifting stretching rod spraying, 0.5-15 meters hight, at least can spray 1 mu per minute, tank volume is 700/1000 litre,.
2)The product has good performance and high efficiency.All kinds of crops can be used early, medium, late diseases and insect pests and chemical control agents spraying.
3)Both solid tire and inflatable tyres can be customized according to their own requirements,Solid tire, width 8cm, advantage: prevent pressure seedling, injury seedling,Inflatable tire, width 12cm, advantage: the cushioning effect is good,You can also choose two types of tires at the same time.
4)Diesel engine can match according to customer requirements, 50 / 100HP diesel engine.
5) Track width adjustable degree to 15 cm, wheel track width can be customized, 1.2-1.5, 1.5, 1.8, 1.7-2.0 meters (conventional) the degree of 1.5 meters high, spray insecticide enough to corn growing homework, can lower to 60 cm, customers can customize according to grow their own situation.}

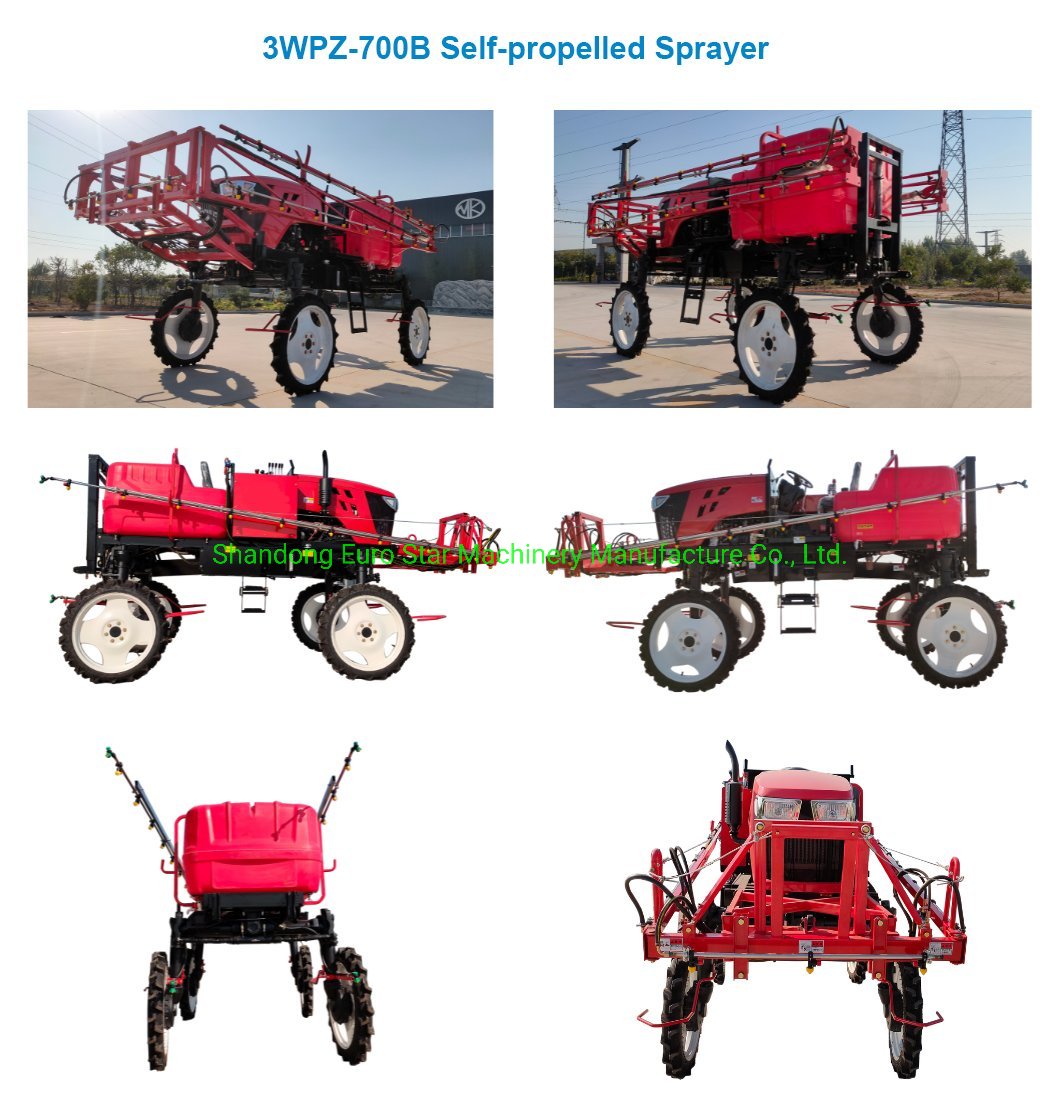

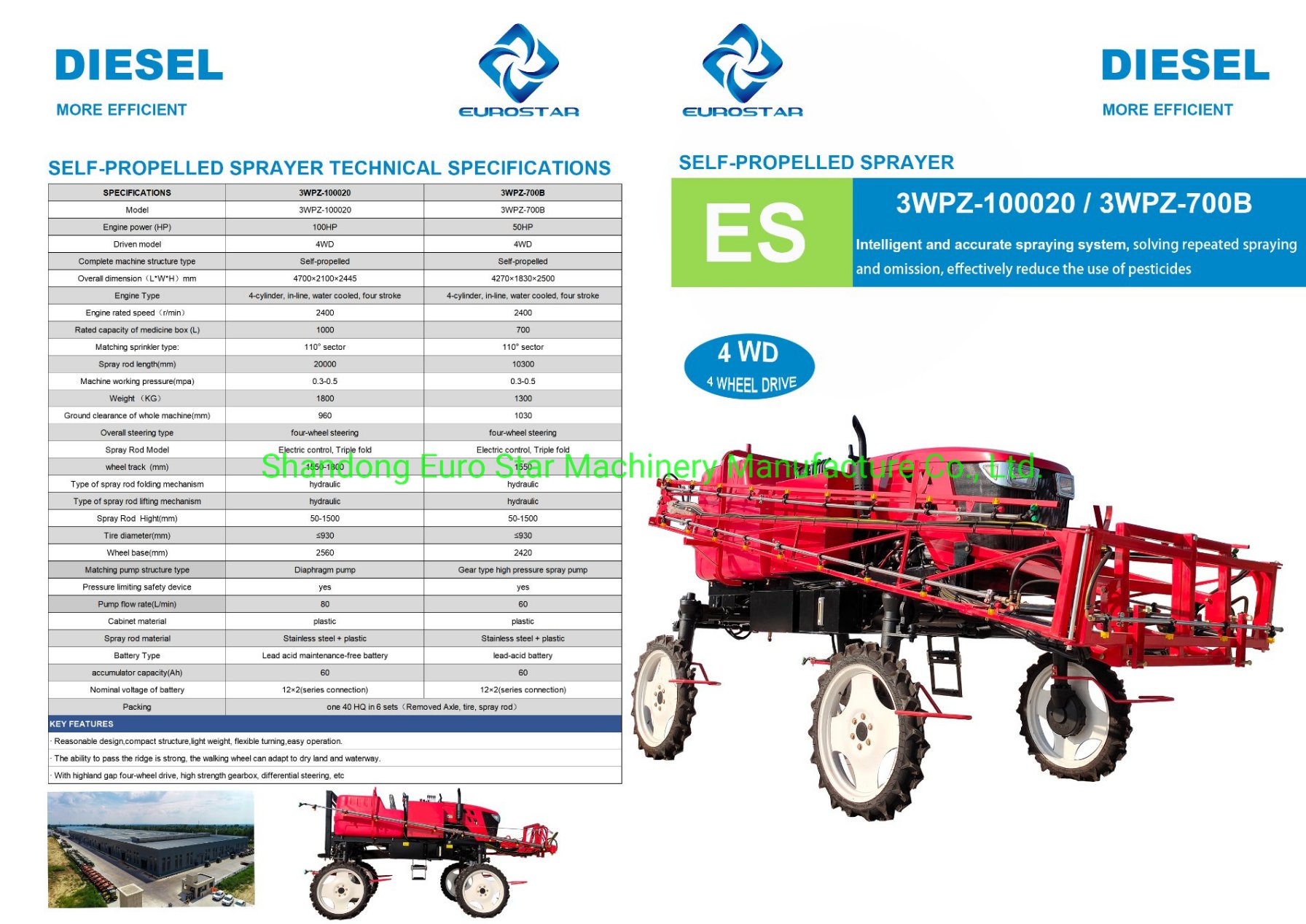

Self Propelled Sprayer product technical parameters

SPECIFICATIONS	3WPZ-100020	3WPZ-700B
Model	3WPZ-100020	3WPZ-700B
Engine power (HP)	100HP	50HP
Driven model	4WD	4WD
Complete machine structure type	Self-propelled	Self-propelled
Overall dimension(LWH)mm	4700×2100×2445	4270×1830×2500
Engine Type	4-cylinder, in-line, water cooled, four stroke	4-cylinder, in-line, water cooled, four stroke
Engine rated speed(r/min)	2400	2400
Rated capacity of medicine box (L)	1000	700
Matching sprinkler type:	110° sector	110° sector
Spray rod length(mm)	20000	10300
Machine working pressure(mpa)	0.3-0.5	0.3-0.5
Weight (KG)	1800	1300
Ground clearance of whole machine(mm)	960	1030
Overall steering type	four-wheel steering	four-wheel steering
Spray Rod Model	Electric control, Triple fold	Electric control, Triple fold
wheel track (mm)	1550-1800	1550
Type of spray rod folding mechanism	hydraulic	hydraulic
Type of spray rod lifting mechanism	hydraulic	hydraulic
Spray Rod Hight(mm)	50-1500	50-1500
Tire diameter(mm)	≤930	≤930
Wheel base(mm)	2560	2420
Matching pump structure type	Diaphragm pump	Gear type high pressure spray pump
Pressure limiting safety device	yes	yes
Pump flow rate(L/min)	80	60
Cabinet material	plastic	plastic
Spray rod material	Stainless steel + plastic	Stainless steel + plastic
Battery Type	Lead acid maintenance-free battery	lead-acid battery
accumulator capacity(Ah)	60	60
Nominal voltage of battery	12×2(series connection)	12×2(series connection)

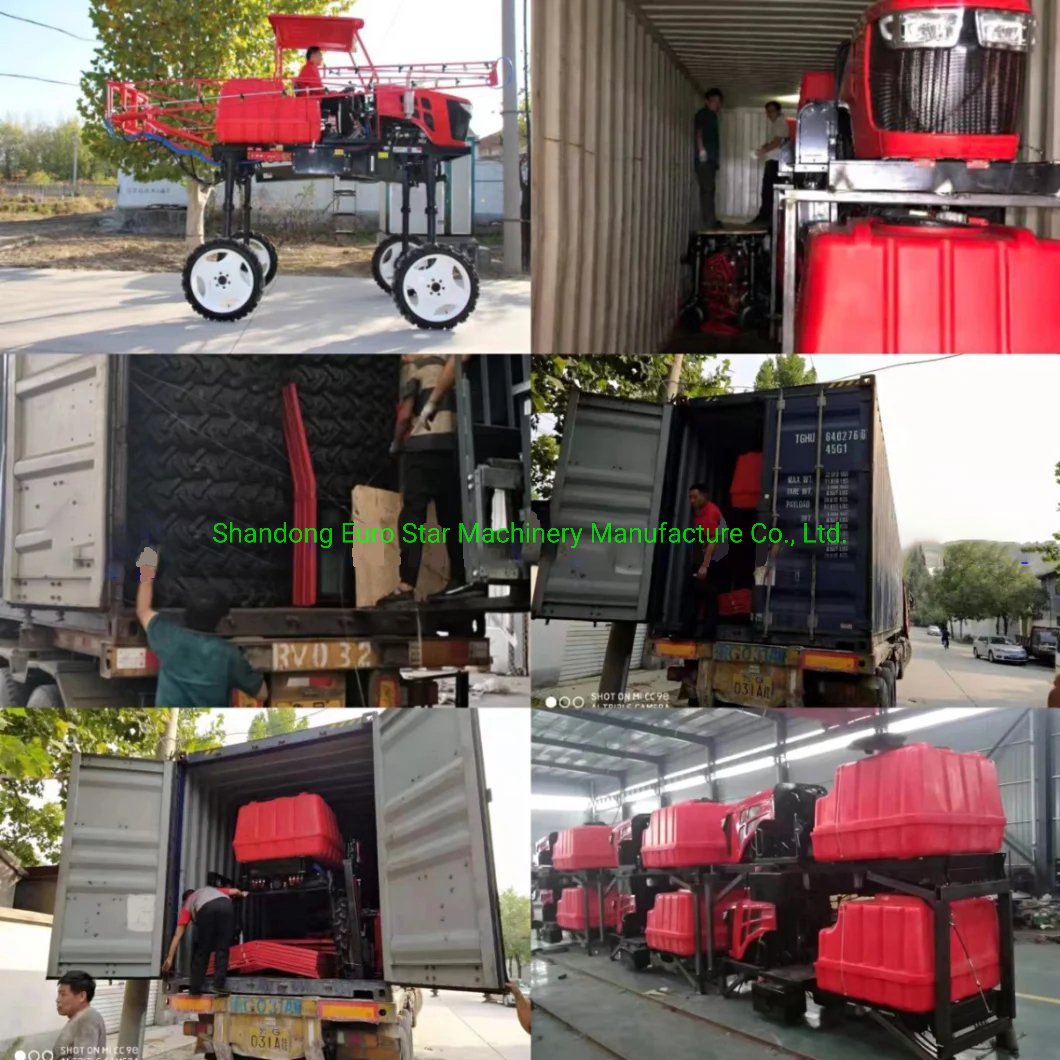

Packing	one 40 HQ in 6 sets(Removed Axle, tire, spray rod)

Factory introduction
^{Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.}

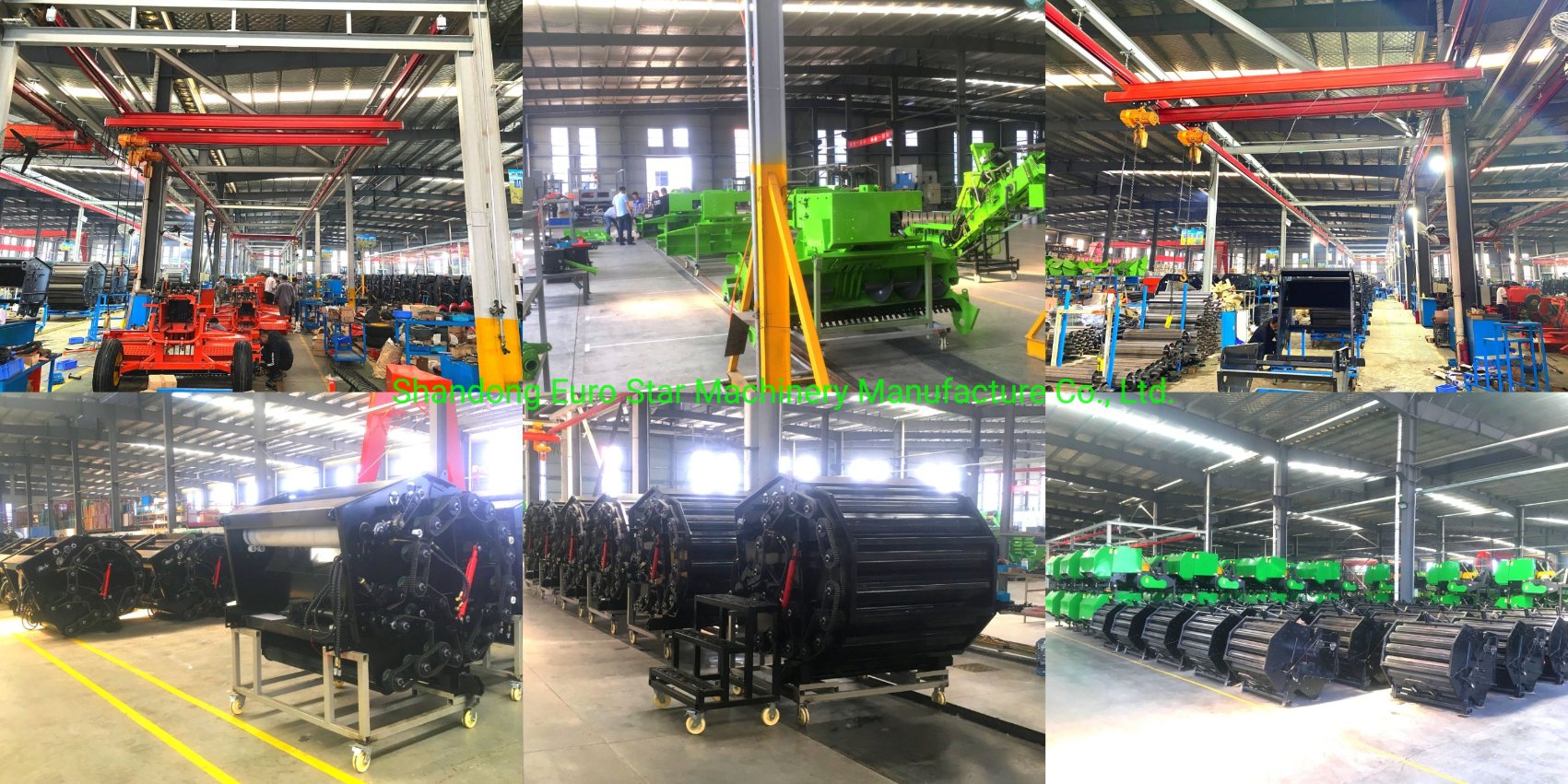

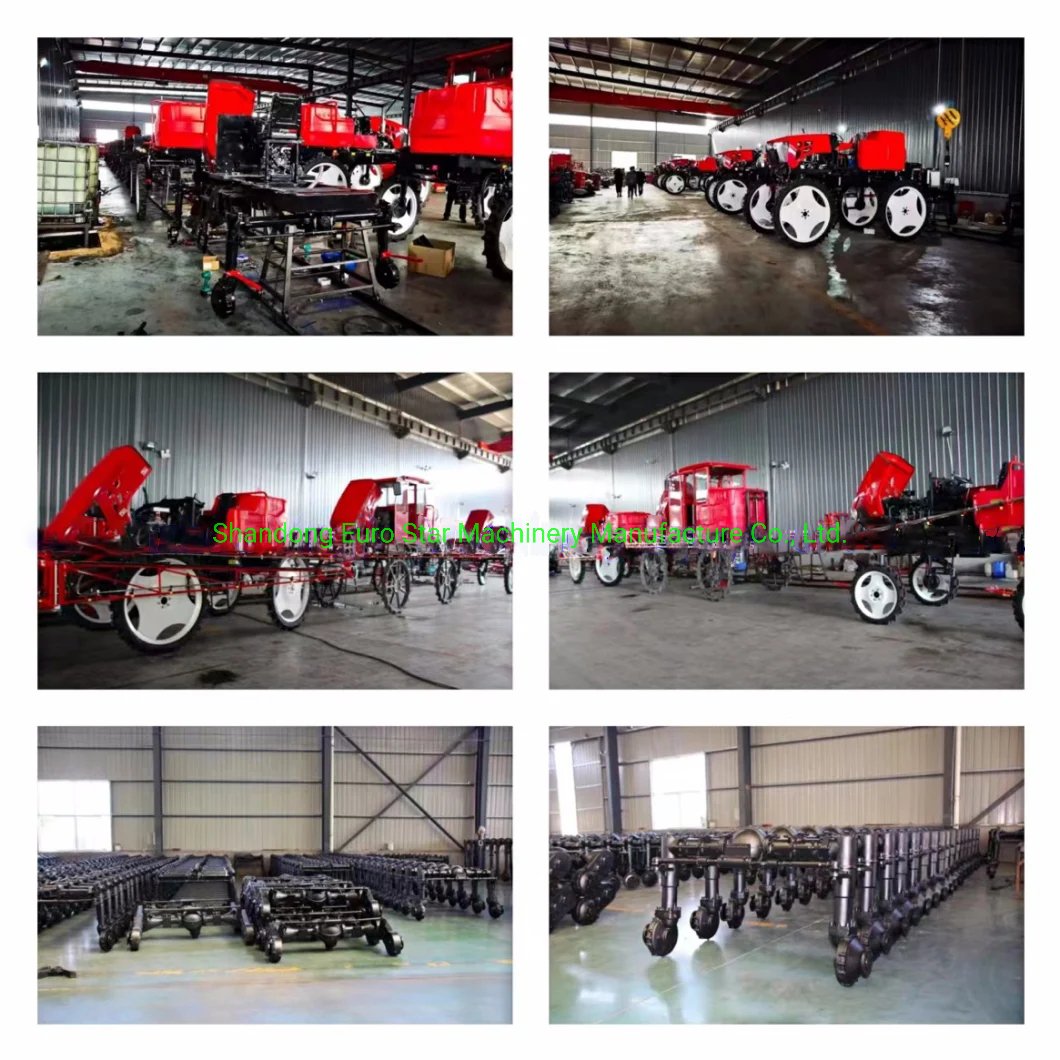

Tractor production workshop display

Service

^{One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.}

1) Market Service

^{Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified}
2) Spare Parts Service
^{Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.}

3) Training Service

^{Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;}

4) Technical Support

^{The whole process Technology support covers on sale and after-sale service.}

5) Terms of the deal:

^{1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business}

FAQ:

Why choose us?

^{1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.}

How Shipment?

^{We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.}

What is the machine advantage? Why I choose from you ?

^{A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers. Each machine is carefully tested before send to customer. Warranty time for 1 year or 1200 working hours.}

How many units can be put in container?

^{A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.}

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

^{A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.}
