E 30-70HP Small Tractors

E Series small tractor has been adjusted for the overall configuration. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations, small farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe,Balers, trailer, lawn mower, disc plough,rake, spraying machine and rotary cultivator.

 E Series small Tractor Product Selling Points
1.E series of multifunctional tractors, its power cover 30-70 horsepower. Optional Rotary Tiller, Lawn Mower, Baler, Sprayer, etc farm implements.
 2. It adopts 8+2 shift, optional: 8F+8R gears. reasonable speed matching, high working efficiency.
 3. Dry brake is the standard configuration, and oil bath type wet brake is optional which has great breaking force and long service life.
 4. Equipped with famous and high-quality engines, large torque reserve and strong power.Power emission upgrade, more advanced performance, low fuel consumption and high reliability.
 5. Farmland tires, grassland tires and engineering tires are optional to satisfy various operations.
 6.Four driving standard configuration mid steering cylinder front drive axle has the maximum gap from the ground of 335mm.
 7.Suspension seat is the standard configuration which can effectively reduce 40% of vibration.
 8. The famous brand front drive axle is highly reliable.The transmission system adopts strong gears, which is more durable.Reinforced half shaft, casing, trailer and other configurations
 9. Adopting a new type of high pressure lifter makes the work more convenient and flexible.Equipped with external double oil cylinders , the working effect is better.
10.The power output speed can be selected from various speeds such as 540/720 rpm, and can be matched with a variety of agricultural machinery and tools, and the scope of application is wider.
11.Optional cab configuration, driving more comfortable.Classic detachable cab.Full hydraulic steering system, easy to operate and flexible.The new streamlined body design has a beautiful appearance and a wider field of vision.New front cover and lamps, novel driving lights decoration, leading the trend of agricultural machinery.
Availability:
Quantity:
  • ES3048E ES4048E ES5048E ES6048E ES6048X ES7048X

  • EUROSTAR

  • 8701911000

E Series small Tractor Product Description

E Series small tractor has been adjusted for the overall configuration. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations, small farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe,Balers, trailer, lawn mower, disc plough,rake, spraying machine and rotary cultivator.
E Series small Tractor Product Selling Points
1.E series of multifunctional tractors, its power cover 30-70 horsepower. Optional Rotary Tiller, Lawn Mower, Baler, Sprayer, etc farm implements.
 2. It adopts 8+2 shift, optional: 8F+8R gears. reasonable speed matching, high working efficiency.
 3. Dry brake is the standard configuration, and oil bath type wet brake is optional which has great breaking force and long service life.
 4. Equipped with famous and high-quality engines, large torque reserve and strong power.Power emission upgrade, more advanced performance, low fuel consumption and high reliability.
 5. Farmland tires, grassland tires and engineering tires are optional to satisfy various operations.
 6.Four driving standard configuration mid steering cylinder front drive axle has the maximum gap from the ground of 335mm.
 7.Suspension seat is the standard configuration which can effectively reduce 40% of vibration.
 8. The famous brand front drive axle is highly reliable.The transmission system adopts strong gears, which is more durable.Reinforced half shaft, casing, trailer and other configurations
 9. Adopting a new type of high pressure lifter makes the work more convenient and flexible.Equipped with external double oil cylinders , the working effect is better.
10.The power output speed can be selected from various speeds such as 540/720 rpm, and can be matched with a variety of agricultural machinery and tools, and the scope of application is wider.
11.Optional cab configuration, driving more comfortable.Classic detachable cab.Full hydraulic steering system, easy to operate and flexible.The new streamlined body design has a beautiful appearance and a wider field of vision.New front cover and lamps, novel driving lights decoration, leading the trend of agricultural machinery.

E series small tractor product technical parameters
ModelES3048EES4048EES5048EES6048EES6048XES7048X
Engine power (HP)30HP40HP50HP60HP60HP70HP
Driven model4WD4WD4WD4WD4WD4WD
EngineLAIDONG KM390BT LAIDONG 4L23LAIDONG 4L100BTLAIDONG KM490LAIDONG KM490ZT2LAIDONG KM4100ZT2
Emission StandardsII stagesII stagesII stagesII stagesII stagesII stages
Engine Type3-cylinder, in-line4-cylinder, in-line, water cooled, four stroke
Engine rated speed(r/min)240024002400240024002400
Clutch Dry type,Single-stage typeDouble-stage type
PTO speed 540/1000rpm540/1000rpm540/1000rpm540/1000rpm540/720rpm540/720rpm
PTO spline number666666
Max.rated drawing power KN≥7.5KN≥10KN≥12.5KN≥12.5KN≥15.1KN≥15.3KN
Weight (KG)1410kg1510kg1510kg1550kg1750kg1980kg
Minimum ground clearanceunder the front axles - 298 mm;     under the rear axles - 340 mm
Steeringhydraulic steeringhydraulic steeringhydraulic steeringhydraulic steeringhydraulic steeringhydraulic steering
Minimum turning radius(m)3.53.53.53.53.53.5
Gears 8F+2R8F+2R8F+2R8F+2R8F+8R8F+8R
Speed(km/h)F 1.78-26.93
R  2.41-11.6
F 1.78-26.93
R  2.41-11.6
F 1.78-26.93
R  2.41-11.6
F 1.78-26.93
R  2.41-11.6
F 1.78-26.93
R  2.41-11.6
F 1.78-26.93
R  2.41-11.6
Wheel Base (mm)1810mm1870mm1870mm1870mm1900mm1900mm
Rear wheel track(mm)1100-1300mm1100-1300mm1100-1300mm1100-1300mm1100mm0.96-1100/1200mm
Overall dimension(L*W*H)mm 3400*1620*22403540*1620*22403640*1620*22403140*1500*22403500*1620*22903570*1620*2300
Tires sizeF 6.5-16/R11.2-24F 6.5-16/R11.2-24F 6.5-16/R11.2-24F6.5-16/R11.2-24F 6.5-16/R 11.2-24F 6.5-16/R 11.2-24
Traction waySwing tractionSwing tractionSwing tractionSwing tractionSwing tractionSwing traction
ballast////Front ballastFront ballast
Lifter////Forced pressure lifterForced pressure lifter
hydraulic output////2 groups of hydraulic output
Flat floor////Flat floorFlat floor
differential lockWith manual differential lockWith manual differential lock
Whole machine colorRed/green/yellow/blueRed/green/yellow/blue
Whole machine circuit voltage12V12V12V12V12V12V
HitchThree-point rear hitch of the 1st (first) categoryThree-point rear hitch of the 1st (first) category
Optional equipment:
Front ballastOptionalOptionalOptionalOptional//
Rear ballast(one layer)OptionalOptionalOptionalOptionalOptionalOptional
RopsOptionalOptionalOptionalOptionalOptionalOptional
CanopyOptionalOptionalOptionalOptionalOptionalOptional
Gear 8F+8ROptionalOptionalOptionalOptional//
Double-stage type clutchOptionalOptionalOptionalOptional//
1 groups of hydraulic outputOptionalOptionalOptionalOptional//
2 groups of hydraulic outputOptionalOptionalOptionalOptional//
Air brakeOptionalOptionalOptionalOptionalOptionalOptional
External Forced lifterOptionalOptionalOptionalOptional//
Fan cabOptionalOptionalOptionalOptionalOptionalOptional
Heating cabOptionalOptionalOptionalOptionalOptionalOptional
Tires 7.5-16/11.2-28OptionalOptionalOptionalOptionalOptionalOptional
Tires 7.5-16/13.6-24////OptionalOptional
Flat floor (7.5-16/11.2-28)OptionalOptionalOptionalOptional//
Iron frame packagingOptionalOptionalOptionalOptionalOptionalOptional
Packingframe/one 40 HQ in 8 sets(without cab);
 frame/one 40 HQ in 6sets(with cab);   SBU/4pcs/40 HQ( Without packing)
SBU/4pcs/40 HQ ( Without packing)

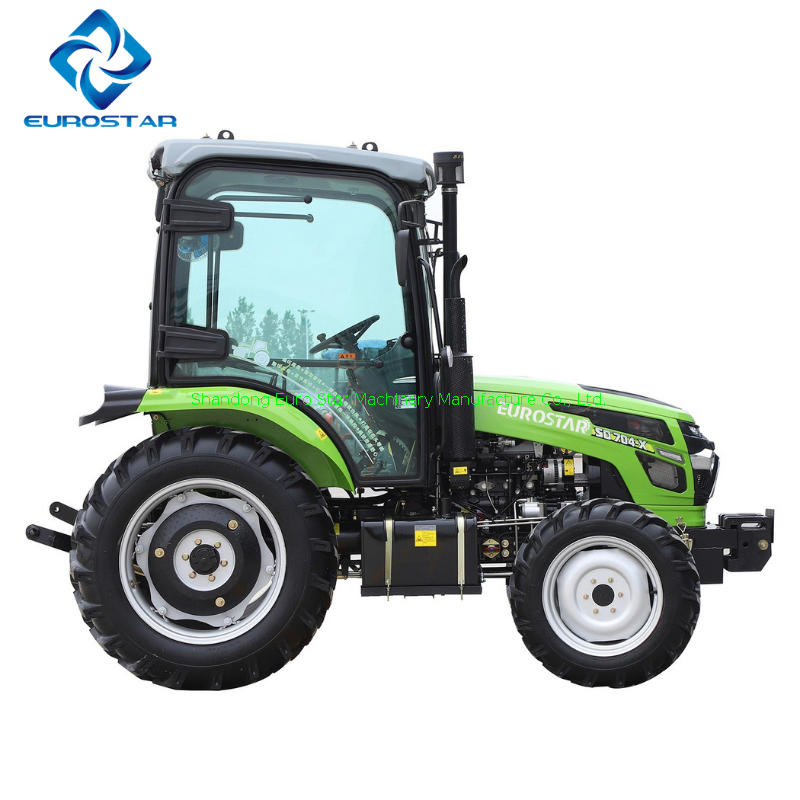

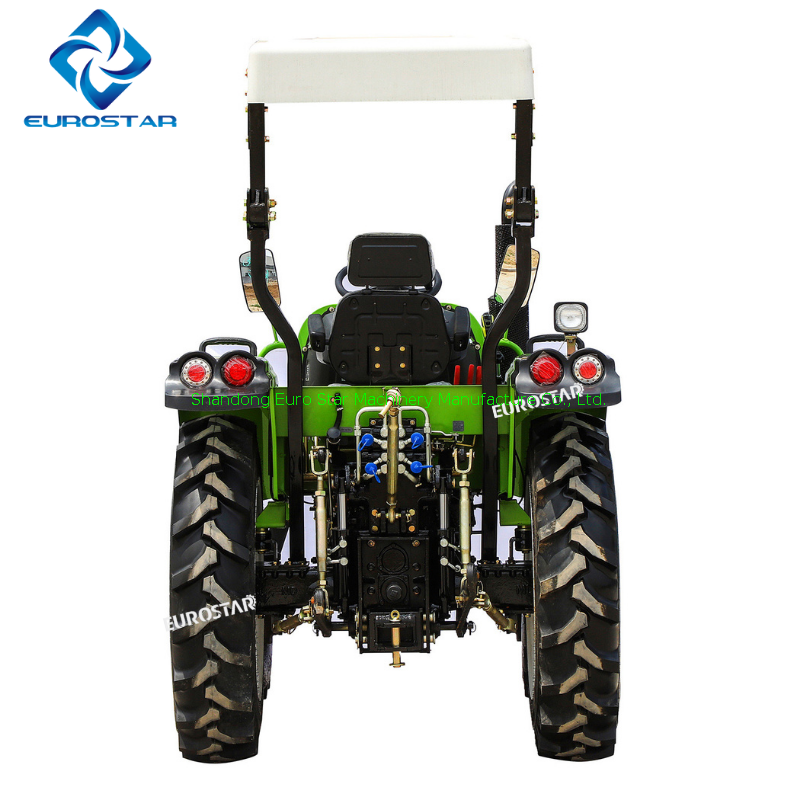

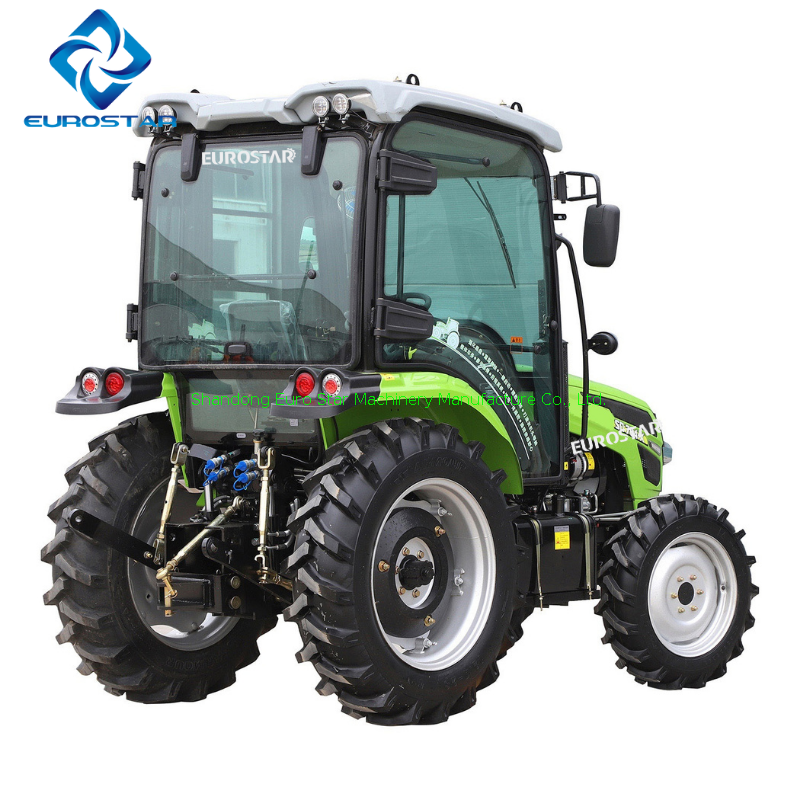

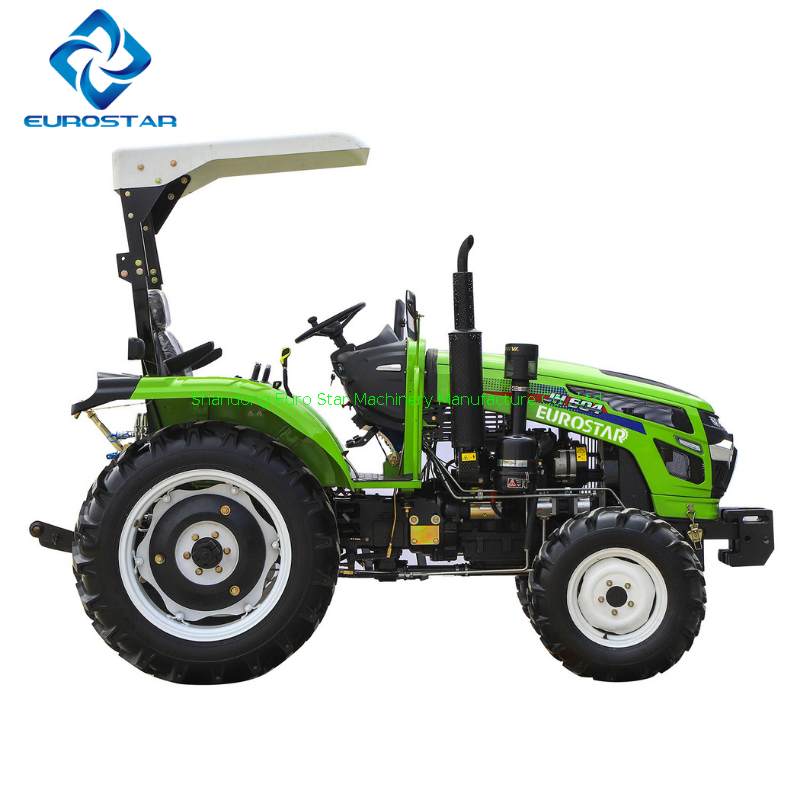

E Series Small Tractor Details Show

E Series Small Tractor Details Show (1)E Series Small Tractor Details ShowE Series Small Tractor Details Show (2)

Full range of tractor products display

Full range of tractor products display
Full range of tractor products display (1)
E Series Small Tractor SKD Packaging and CBU Packaging Display
G series mini Orchard Tractor SKD packaging and CBU packaging display
E Series Small Tractor Container Display
G series mini Orchard Tractor Container Display

E Series Small Tractor Supporting Farm Implements Display

G series mini Orchard Tractor supporting farm implements display (1)G series mini Orchard Tractor supporting farm implements display (2)G series mini Orchard Tractor supporting farm implements display (3)G series mini Orchard Tractor supporting farm implements display
