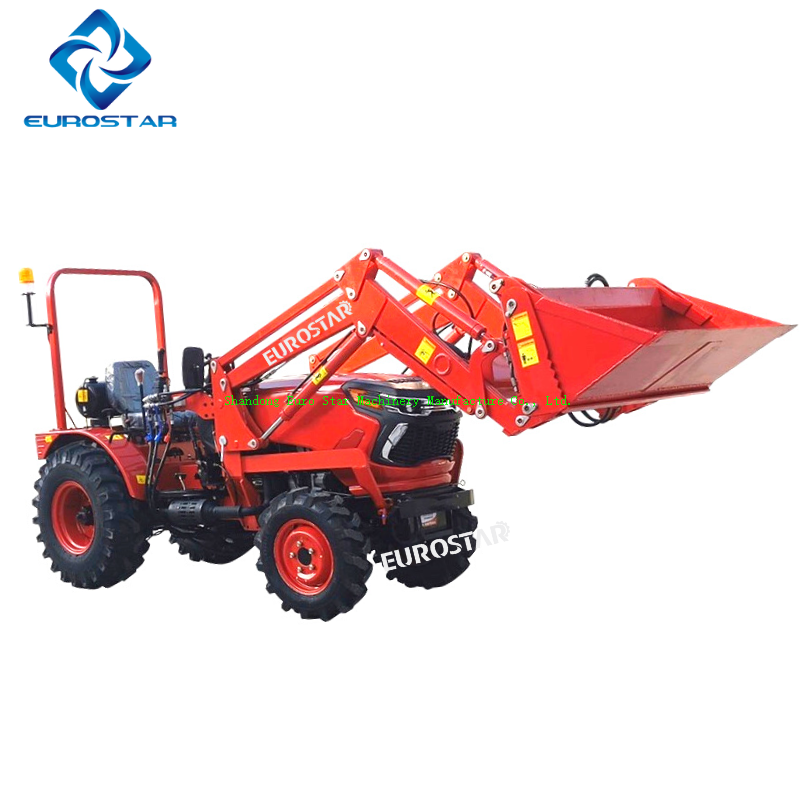

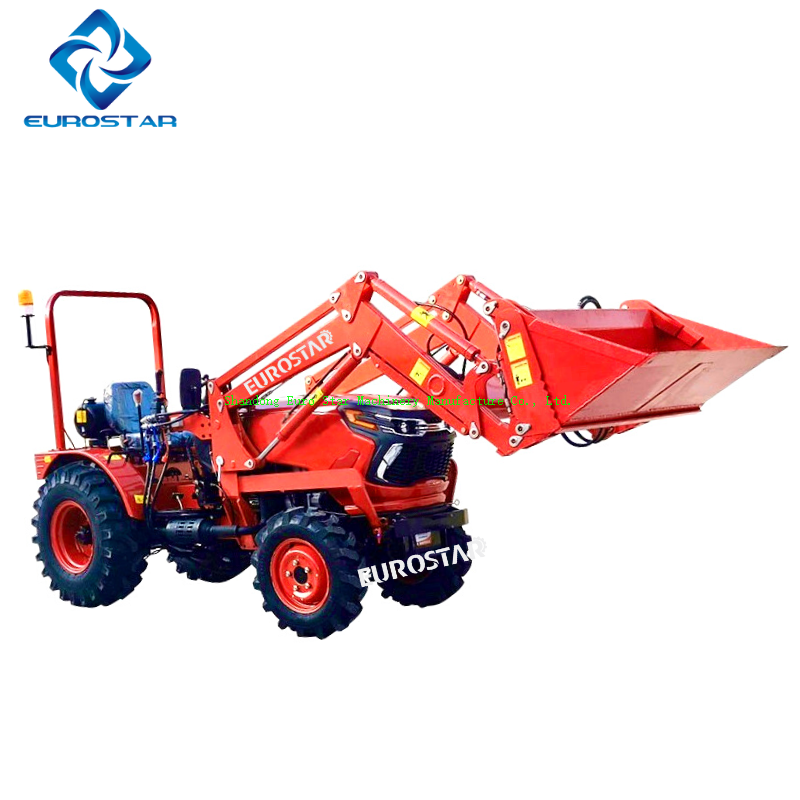

DY 25HP Mini Orchard Tractor

DY mini orchard tractor adopts Flat floor, has been adjusted for the overall configuration. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations, small farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, lawn mower, disc plough,rake, spraying machine and rotary cultivator.
Availability:
Quantity:
  • DY254
  • EUROSTAR
  • 8701911000

DY 25HP Mini Orchard Tractor Product Description


DY Series mini tractor adopts Flat floor, has been adjusted for the overall configuration. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations, small farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, hay mower, rake, spraying machine and rotary cultivator.


 DY series mini Tractor Product Selling Points

1.DY series mini tractors, its power cover 25-50 horsepower.Can choose to install the Euro III engine. Optional Rotary Tiller, Lawn Mower, Baler, Sprayer, etc farm implements.
 2. Standard configuration: 8F+2R gears, optional: 8F+8R gears. Synchronizer shuttle-type gear is also an optional configuration which is energy saving, reliable and comfortable.

3.Dry brake is the standard configuration, and oil bath type wet brake is optional which has great breaking force and long service life.
 4.Flat floor structure and side-placed operating lever satisfy the man-machine engineering.
5. Farmland tires, grassland tires and engineering tires are optional to satisfy various operations.
6.Four driving standard configuration mid steering cylinder front drive axle has the maximum gap from the ground of 335mm.

7.Suspension seat is the standard configuration which can effectively reduce 40% of vibration.
DY series mini Orchard Tractor product technical parameters

ModelDY254DY304DY354DY404DY454DY504
engine power (HP)253035404550
Type4WD;optional: 2WD
engine rate (r/min)23502400
outline dimension (mm)3100*1350*16703100*1350*1670
long (Front weight to suspension point)3100mm3100mm
wide(Drive shaft side)1350mm1350mm
High (Silencer top)1670mm1670mm
High (Steering wheel top)1450mm1450mm
wheel base (mm)18201820
front wheel tread (mm) 1225-14251225-1425
rear wheel tread (mm) 1160-13001160-1300
Minimum ground gap (mm)290-370290-370
architecture weight (kg)1200-13501200-1350
front wheel tyre(front/rear)F600-12/R9.5-16,optional: grass tires
Gearbox8F+2R,optional: 8F+8R(Double acting clutch)
clutchsingle piece,dry-type,single-action ,Constant combination
brake systemMechanical shoe type,Install air brake
Central drive type (front/rear)Spiral bevel gear pair/spiral bevel gear pair
Differential type (front/rear)Two-planet gear closed/two-planet gear closed
differential lock Tooth type
Final transmission type (front/rear)Bevel gear/built-in single-stage straight cylindrical gear
Shunting box type spur gear/Meshing sleeve shift
Steering typeFull hydraulic steering
 Hydraulic system typeSemi-split type
(mpa)System relief valve adjustment pressure(mpa)System relief valv22.5±0.5e adjustment pressure
tractionU type hook
PTO shaft typePostposition non-independent type/ 35 Rectangular Splines/ 6 tooth
PTO Standard speed (r/min)540/720
hydraulic out flow33.6/min
hydraulic lift Systemmaximumlifting force (kn)6.64
Operating platformFlat bottom plate
Hydraulic output  Multi-way valve,Three hydraulic outputs
hydraulic lift system linkage hitchHydraulic lifter,I class of rear three point suspension
Optional configuration and price2WD;No Air brake;Safety rack awning;double acting clutch;8F+8R; F600-12/R9.5-16grass tires;SKD iron frame packaging;Euro III engine;40HQ container can ship 16 tractors.


DY series mini tractor details show
dy series tractordy tractor

TE-P series small Flat floor tractor details show

TE-P

TE-J series small Flat floor tractor details show

TE-J

DY series mini Orchard Tractor SKD packaging and CBU packaging display
G series mini Orchard Tractor SKD packaging and CBU packaging display
DY series mini Orchard Tractor Container Display
G series mini Orchard Tractor Container Display

DY series mini Orchard Tractor supporting farm implements display

G series mini Orchard Tractor supporting farm implements display (1)G series mini Orchard Tractor supporting farm implements display (2)G series mini Orchard Tractor supporting farm implements display (3)G series mini Orchard Tractor supporting farm implements display

Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

Tractor production workshop display

tractor workshop

Service

One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.

1) Market Service

Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified


2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training Service

Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;

4) Technical Support

The whole process Technology support covers on sale and after-sale service.

 5) Terms of the deal:

1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business


FAQ:

Why choose us?

1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How Shipment?

We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?

A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers. Each machine is carefully tested before send to customer. Warranty time for 1 year or 1200 working hours.

How many units can be put in container?

A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
