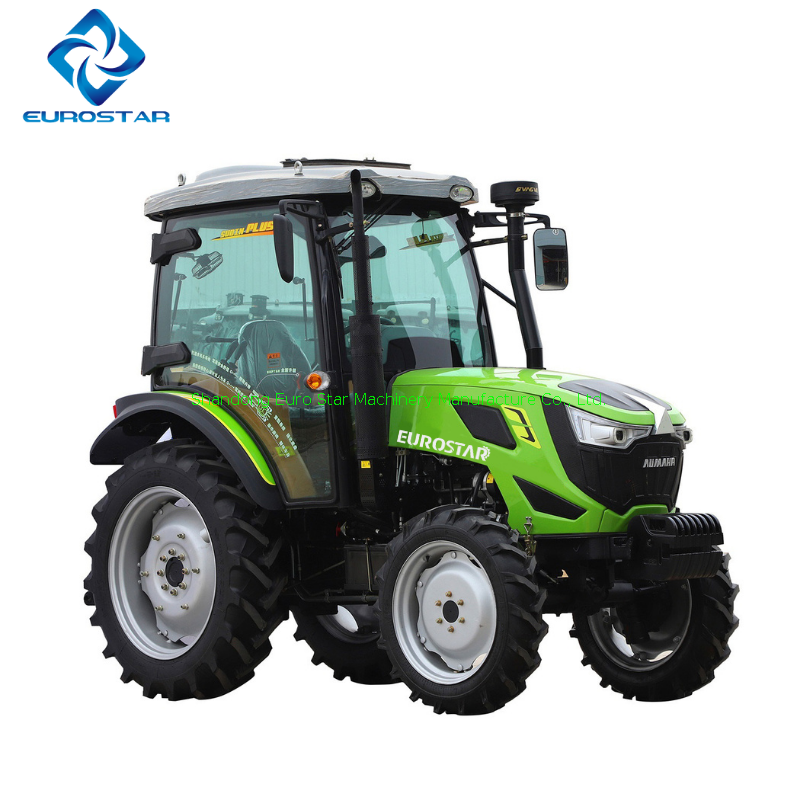

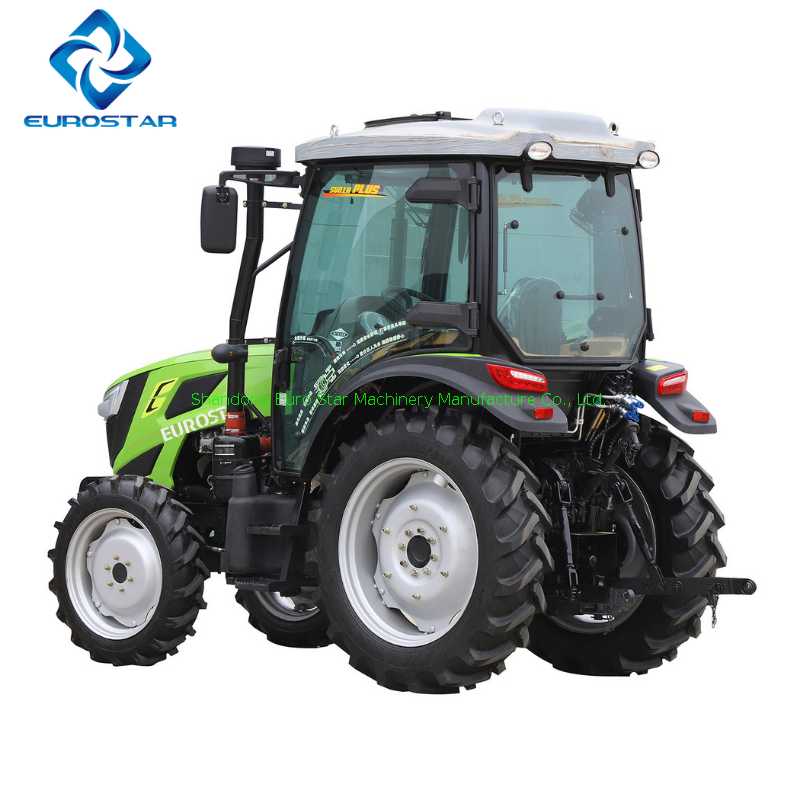

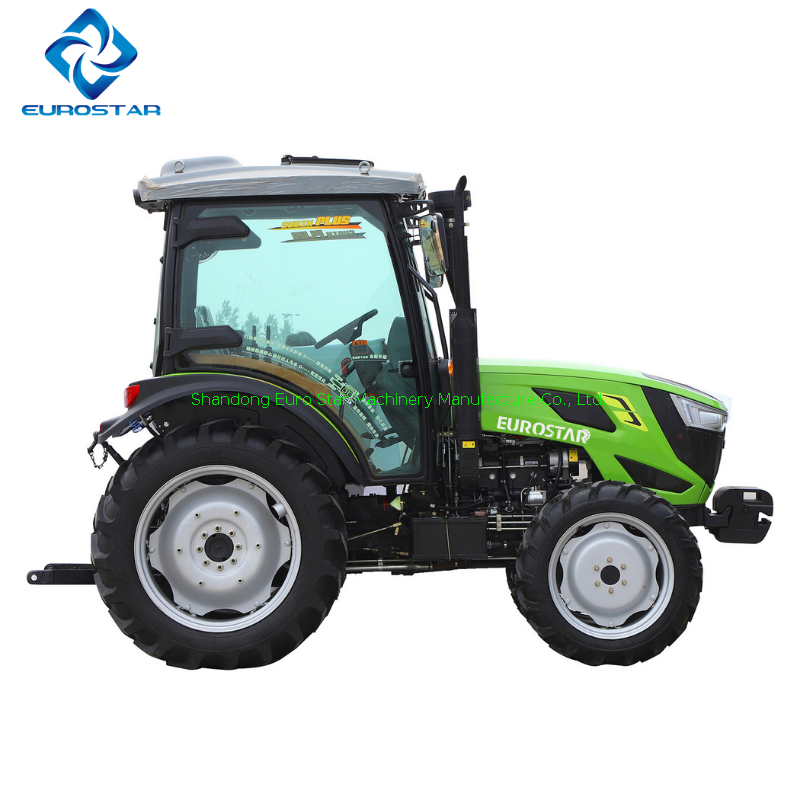

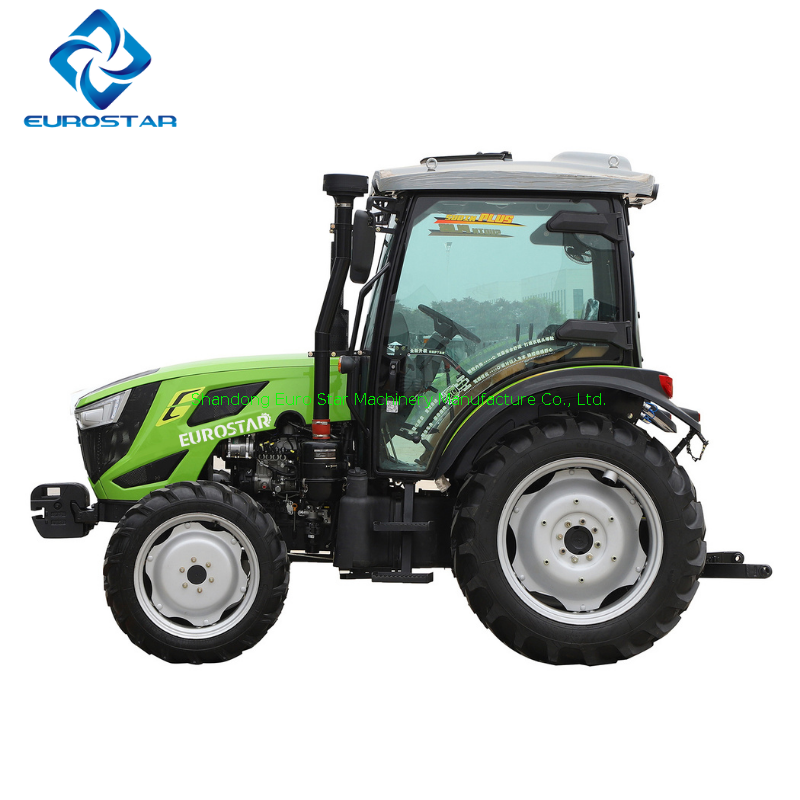

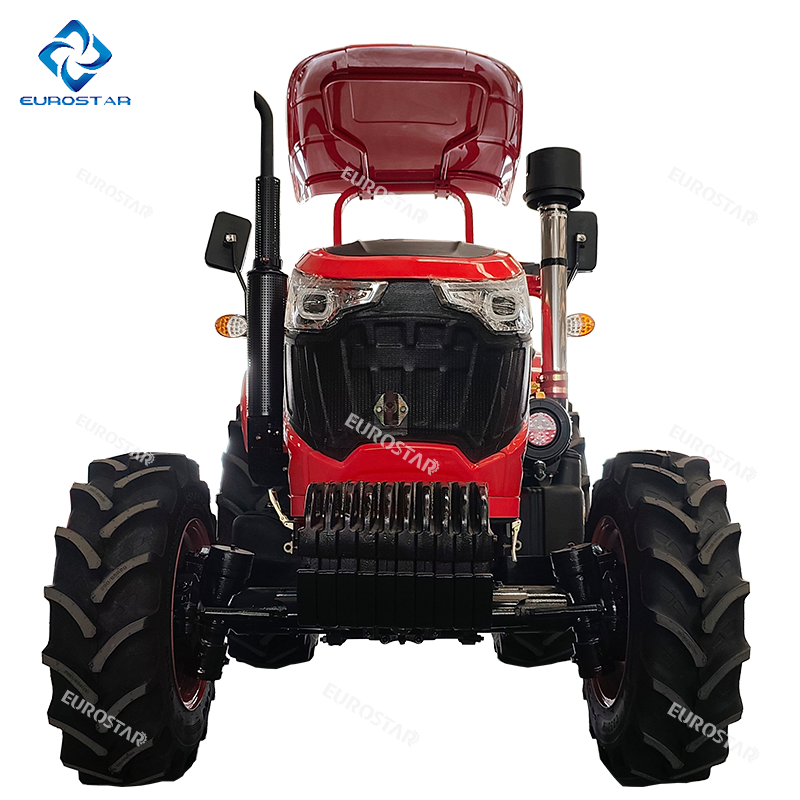

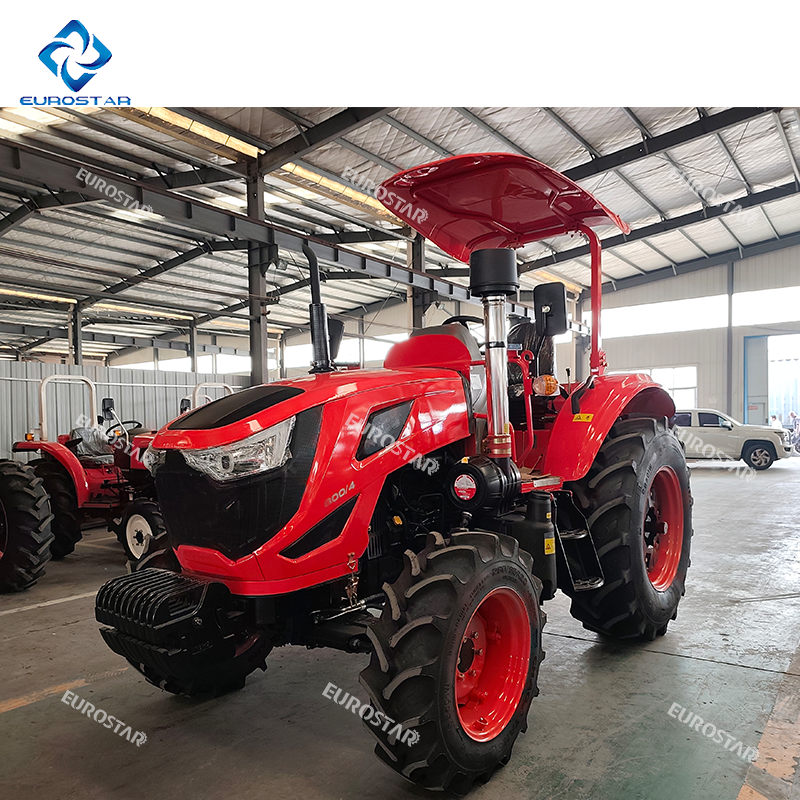

B 70HP Paddy Lawn Big Garden Diesel Tractor

B Series tractor has been adjusted for the overall configuration. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations,farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations.
regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Matching machines and tools: farmland cultivating machines and tools like front loader, backhoe, trailer, lawn mower,baler, Disc plough, disc rake, rotary tiller, spraying machine and rotary cultivator.
B Series wheel Tractor Product Selling Points
1. Standard configuration: 12F+12R gears, has the features like energy saving, reliable and comfortable.
2. Complete damping floor, and flat floor, side-placed operating lever and suspension pedal are optional, which improve manipulation comfort.
3. newest body shape makes it fashionable and dynamic. The one-piece design of its floor and cabin frame guarantees a safe carrying performance and good seal. The hood, with a wide front and a narrow back, provides good visibility.
4. Based on the optimized man-machine engineering, it features good control layout, differentiated colors, a right-hand console, suspending gas and clutch pedals, and a steering wheel below the hand throttle and shuttle. The steering gear is adjustable both forward and backward.
5. air intake and exhaust pipes are hidden behind the A column in the cab, thus providing a better view.
6. A larger fuel tank capacity makes longer operation possible.
7. it's equipped with LED daytime running lamps and convex headlights of separated far and near lights. Overall chrome decorated light boxes look beautiful and luxury. Tail lights use U-shape view LED lamps and LED stop lamps, combined with streamline modeling.
8. whole vehicle is equipped with waterproof plugs and high-standard and reliable insurance. With high-temperature resistant engine lines, its electrical safety and reliability are greatly improved.
9. new cab also boasts the following features that enhance its comfortableness in addition to its better compliance with ergonomic principles.
1) A larger driving space
2)  A three-tier roof with excellent thermal insulation; a front window that enables good ventilation; a transparent skylight with good visibility; and an adjustable sliding window guard.
3)  Car air conditioning that defrosts and demists the front windshield; a circular air vent layout; a warming and cooling system integrated together; a temperature range of 24 ºC ~ 27 ºC.
4) The foaming steering wheel in a new style that looks more beautiful and feels more comfortable.
5) A Grammer-styled luxury seat, compression molded, with its front and back, top and bottom as well as its height adjustable; a file box attached for the seat.
6)  Doors and windows use new cross-section sealing strips which guarantee a more reliable seal. Clearance holes between the floor and the outside are covered with caps, effectively preventing dust, reducing noise and improving the cab's seal.
Availability:
Quantity:
  • ES6048B ES7048B ES8048B ES9048B

  • EUROSTAR

  • 8701911000

B Series Wheel Tractor Product Description

B Series tractor has been adjusted for the overall configuration. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations,farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Matching machines and tools: farmland cultivating machines and tools like front loader, backhoe, trailer, lawn mower,baler, Disc plough, disc rake, rotary tiller, spraying machine and rotary cultivator.

B Series Wheel Tractor Product Selling Points
1. Standard configuration: 12F+12R gears, has the features like energy saving, reliable and comfortable.
2. Complete damping floor, and flat floor, side-placed operating lever and suspension pedal are optional, which improve manipulation comfort.
3. newest body shape makes it fashionable and dynamic. The one-piece design of its floor and cabin frame guarantees a safe carrying performance and good seal. The hood, with a wide front and a narrow back, provides good visibility.
4. Based on the optimized man-machine engineering, it features good control layout, differentiated colors, a right-hand console, suspending gas and clutch pedals, and a steering wheel below the hand throttle and shuttle. The steering gear is adjustable both forward and backward.
5. air intake and exhaust pipes are hidden behind the A column in the cab, thus providing a better view.
6. A larger fuel tank capacity makes longer operation possible.
7. it's equipped with LED daytime running lamps and convex headlights of separated far and near lights. Overall chrome decorated light boxes look beautiful and luxury. Tail lights use U-shape view LED lamps and LED stop lamps, combined with streamline modeling.
8. whole vehicle is equipped with waterproof plugs and high-standard and reliable insurance. With high-temperature resistant engine lines, its electrical safety and reliability are greatly improved.
9. new cab also boasts the following features that enhance its comfortableness in addition to its better compliance with ergonomic principles.
1) A larger driving space
2)  A three-tier roof with excellent thermal insulation; a front window that enables good ventilation; a transparent skylight with good visibility; and an adjustable sliding window guard.
3)  Car air conditioning that defrosts and demists the front windshield; a circular air vent layout; a warming and cooling system integrated together; a temperature range of 24 ºC ~ 27 ºC.
4) The foaming steering wheel in a new style that looks more beautiful and feels more comfortable.
5) A Grammer-styled luxury seat, compression molded, with its front and back, top and bottom as well as its height adjustable; a file box attached for the seat.
6)  Doors and windows use new cross-section sealing strips which guarantee a more reliable seal. Clearance holes between the floor and the outside are covered with caps, effectively preventing dust, reducing noise and improving the cab's seal.

B Series Wheel Tractor Product Technical Parameters
ModelES6048BES7048BES8048BES9048B
Engine power (HP)60HP70HP80HP90HP
Driven model4WD4WD4WD4WD
EngineLAIDONG KM490ZT2LAIDONG KM4100LAIDONG KM4100YCD4T22T-90
Emission StandardsII stagesII stagesII stagesII stages
Engine Ratial Speed(r/min)2400240024002400
Engine type4-cylinder, diesel4-cylinder, diesel4-cylinder, diesel4-cylinder, diesel
Clutch Double-stage typeDouble-stage typeDouble-stage typeDouble-stage type
PTO speed 540/760rpm540/760rpm540/760rpm540/1000rpm
PTO spline number6666
Max.rated drawing power  KN≥15.5KN≥16.5KN≥18KN≥22.1KN
Weight (kg)2700kg2740kg2600kg2600kg
Steeringhydraulic steeringhydraulic steeringhydraulic steeringhydraulic steering
Gears 12F+12R12F+12R12F+12R12F+12R
Speed(km/h)F 1.78-26.93
R  2.41-11.6
F 1.78-26.93
R  2.41-11.6
F 1.78-26.93
R  2.41-11.6
F 1.78-26.93
R  2.41-11.6
Tires sizeF 8.3-24/R 12.4-32F 8.3-24/R 12.4-32F 8.3-24/R 12.4-32F 8.3-24/R 12.4-32
Wheel Base (mm)2010mm2010mm2050mm2050mm
Front/ Rear Wheel1300mm1300mm1300mm1300mm
Overall dimension(L*W*H)mm 4050×1795×26304050×1795×26304050×1820×27004050×1830×2660
LifterForced pressure lifterForced pressure lifterForced pressure lifterForced pressure lifter
Optional equipment:
Front ballast 144KGOptionalOptionalOptionalOptional
Rear ballast(one layer)OptionalOptionalOptionalOptional
RopsOptionalOptionalOptionalOptional
SunshadeOptionalOptionalOptionalOptional
Fan cabOptionalOptionalOptionalOptional
Heating cabOptionalOptionalOptionalOptional
AC cabOptionalOptionalOptionalOptional
2 groups of hydraulic outputOptionalOptionalOptionalOptional
Air brakeOptionalOptionalOptionalOptional
Swing tractionOptionalOptionalOptionalOptional
Tires 8.3-24/14.9-30OptionalOptionalOptionalOptional
Replacement of simulation wheels for cab model packingOptionalOptionalOptionalOptional
Packingone 40 HQ in 3setsone 40 HQ in 3setsone 40 HQ in 3setsone 40 HQ in 3sets

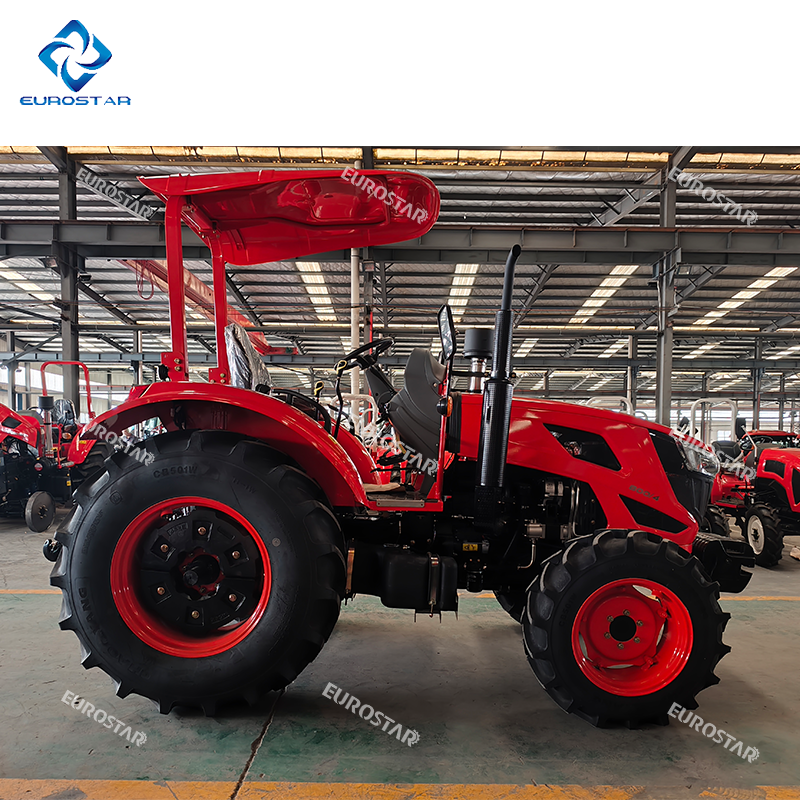

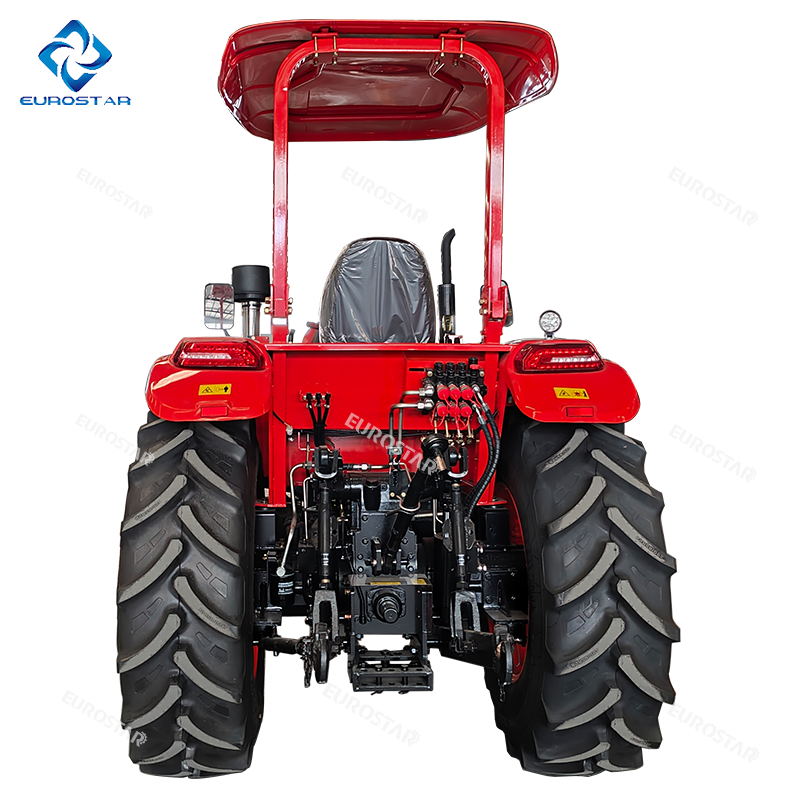

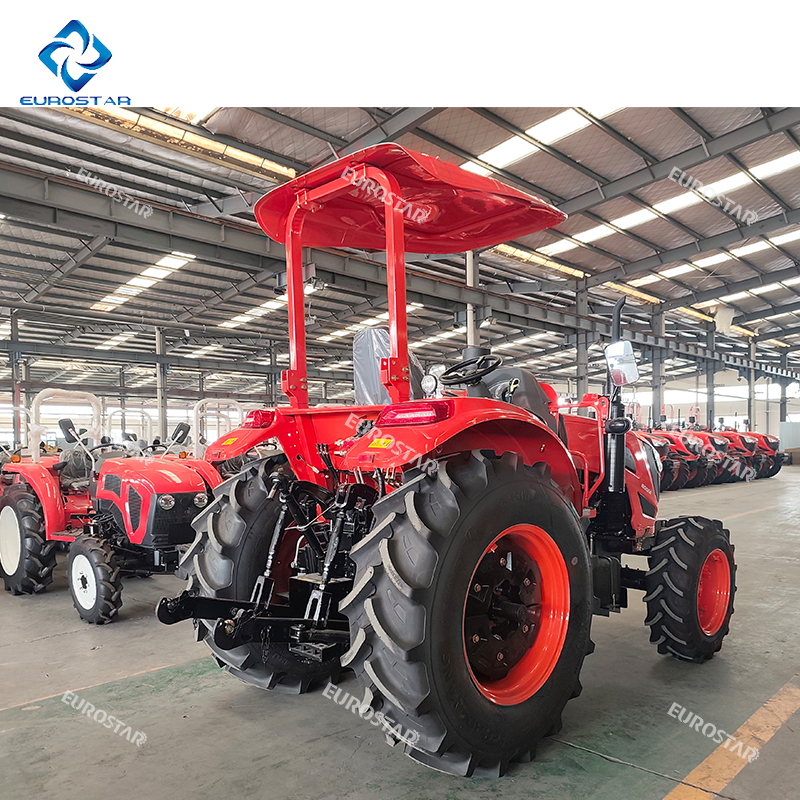

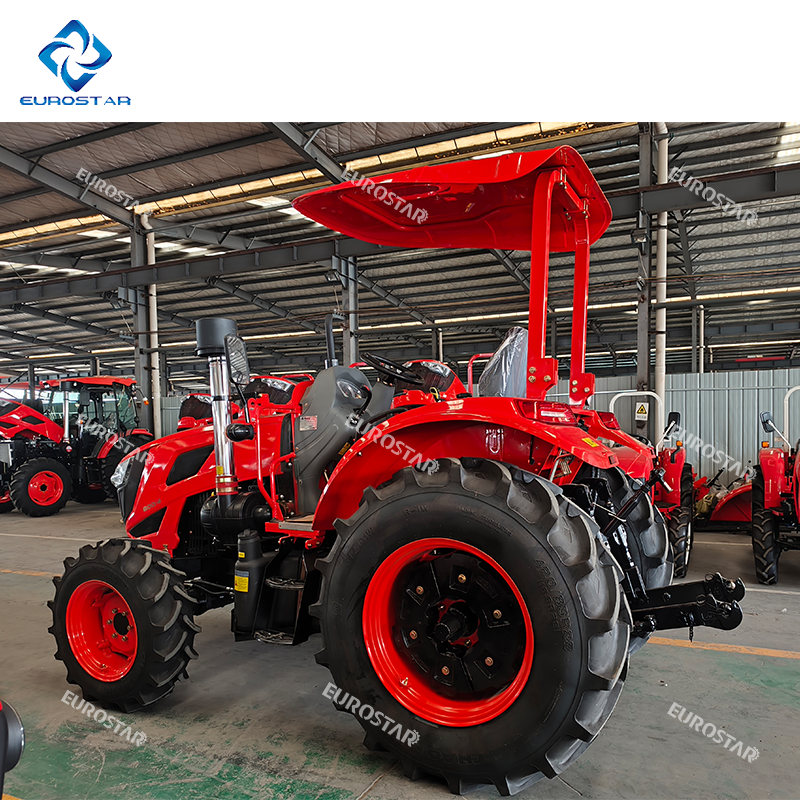

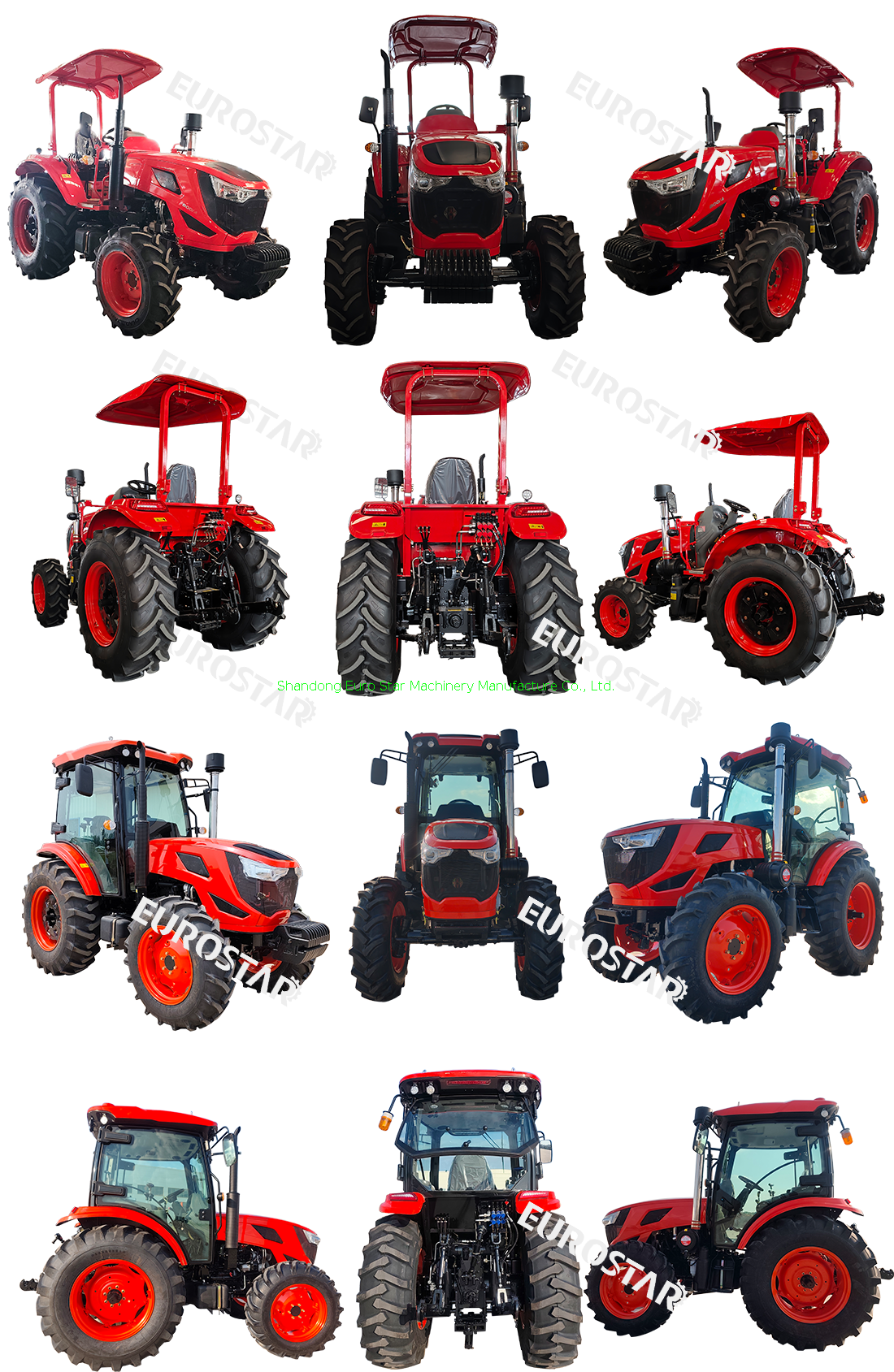

B Series Tractor Details Show

BB B (1)

Full range of tractor products display
Full range of tractor products display

Full range of tractor products display (1)
B SeriesTractor SKD Packaging and CBU Packaging Display
G series mini Orchard Tractor SKD packaging and CBU packaging display

B Series Tractor Container Display
G series mini Orchard Tractor Container Display

B Series Tractor Supporting Farm Implements Display

G series mini Orchard Tractor supporting farm implements display (1)G series mini Orchard Tractor supporting farm implements display (2)G series mini Orchard Tractor supporting farm implements display (3)G series mini Orchard Tractor supporting farm implements display


Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

Tractor production workshop display

tractor workshop

Service

One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.

1) Market Service

Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified

2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training Service

Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;

4) Technical Support

The whole process Technology support covers on sale and after-sale service.

5) Terms of the deal:

1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:

Why choose us?

1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.

How Shipment?

We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?

A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers. Each machine is carefully tested before send to customer. Warranty time for 1 year or 1200 working hours.

How many units can be put in container?

A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
