Agricultural Self Propelled Sprayer

Self propelled sprayer with intelligent and accurate spraying system, it can solve problems such as repeated spraying and omission, effectively reduce pesticide usage and production cost. It can be widely used in soil treatment before sowing, seedling herbicides and pest control soybean, wheat, rice, potatoes and other crops and herbs, grass, garden flowers and other plants and other large areas. This model is suitable for variety of pesticides and other herbicide spraying operation.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
Agricultural Self Propelled Sprayer
Agricultural Self Propelled Sprayer
Agricultural Self Propelled Sprayer
Agricultural Self Propelled Sprayer
Agricultural Self Propelled Sprayer
Agricultural Self Propelled Sprayer
  • 3WPZ-100020/ 3WPZ-700B

  • EUROSTAR

  • 8424490000

Self Propelled Sprayer
Self propelled sprayer with intelligent and accurate spraying system, it can solve problems such as repeated spraying and omission, effectively reduce pesticide usage and production cost. It can be widely used in soil treatment before sowing, seedling herbicides and pest control soybean, wheat, rice, potatoes and other crops and herbs, grass, garden flowers and other plants and other large areas. This model is suitable for variety of pesticides and other herbicide spraying operation.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.

Self Propelled Sprayer product selling points
1)Highland gap spray rod spraying machine with  engine and four-wheel all-wheel-drive, track width adjustable, hydraulic lifting stretching rod spraying, 0.5-15 meters hight, at least can spray 1 mu per minute, tank volume is 700/1000 litre,.
2)The product has good performance and high efficiency.All kinds of crops can be used early, medium, late diseases and insect pests and chemical control agents spraying.
3)Both solid tire and inflatable tyres can be customized according to their own requirements,Solid tire, width 8cm, advantage: prevent pressure seedling, injury seedling,Inflatable tire, width 12cm, advantage: the cushioning effect is good,You can also choose two types of tires at the same time.
4)Diesel engine can match according to customer requirements, 50 / 100HP diesel engine.
5) Track width adjustable degree to 15 cm, wheel track width can be customized, 1.2-1.5, 1.5, 1.8, 1.7-2.0 meters (conventional) the degree of 1.5 meters high, spray insecticide enough to corn growing homework, can lower to 60 cm, customers can customize according to grow their own situation.

Self Propelled Sprayer product technical parameters

SPECIFICATIONS3WPZ-1000203WPZ-700B
Model3WPZ-1000203WPZ-700B
Engine power (HP)100HP50HP
Driven model4WD4WD
Complete machine structure typeSelf-propelledSelf-propelled
Overall dimension(L*W*H)mm4700×2100×24454270×1830×2500
Engine Type4-cylinder, in-line, water cooled, four stroke4-cylinder, in-line, water cooled, four stroke
Engine rated speed(r/min)24002400
Rated capacity of medicine box (L)1000700
Matching sprinkler type:110° sector110° sector
Spray rod length(mm)2000010300
Machine working pressure(mpa)0.3-0.50.3-0.5
Weight (KG)18001300
Ground clearance of whole machine(mm)9601030
Overall steering typefour-wheel steeringfour-wheel steering
Spray Rod ModelElectric control, Triple foldElectric control, Triple fold
wheel track  (mm)1550-18001550
Type of spray rod folding mechanismhydraulichydraulic
Type of spray rod lifting mechanismhydraulichydraulic
Spray Rod  Hight(mm)50-150050-1500
Tire diameter(mm)≤930≤930
Wheel base(mm)25602420
Matching pump structure typeDiaphragm pumpGear type high pressure spray pump
Pressure limiting safety deviceyesyes
Pump flow rate(L/min)8060
Cabinet materialplasticplastic
Spray rod materialStainless steel + plasticStainless steel + plastic
Battery TypeLead acid maintenance-free batterylead-acid battery
accumulator capacity(Ah)6060
Nominal voltage of battery12×2(series connection)12×2(series connection)
Packingone 40 HQ in 6 sets(Removed Axle, tire, spray rod)

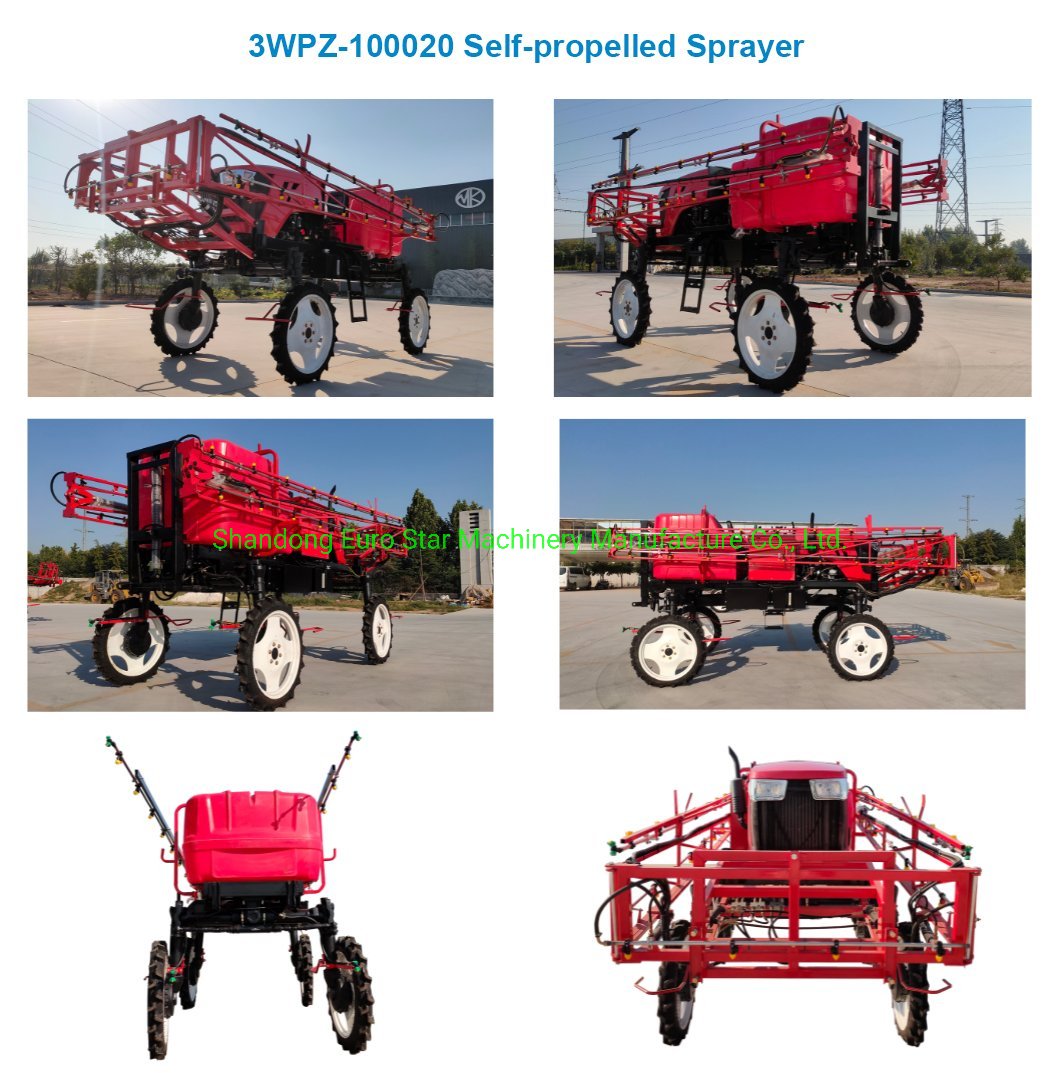

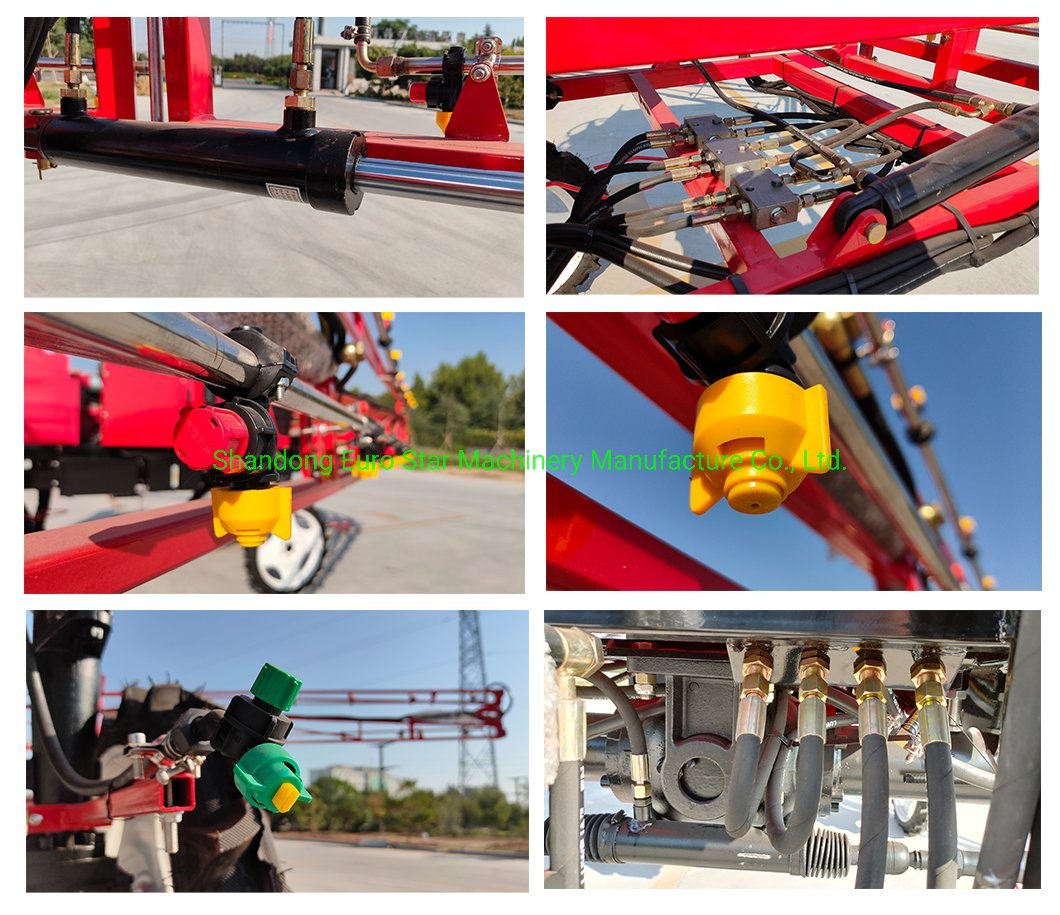

Self Propelled Sprayer details showSelf Propelled Sprayer details showSelf Propelled Sprayer details show-1

Self Propelled Sprayer details show (3) (3)Self Propelled Sprayer details show (6)Self Propelled Sprayer details show (5)Self Propelled Sprayer details show (4) (4)Self Propelled Sprayer details show-2 (2)Self Propelled Sprayer display

Self Propelled Sprayer display (1)Self Propelled Sprayer displaySelf Propelled Sprayer workshop displaySelf Propelled Sprayer workshop display

Self Propelled Sprayer packaging and loading displaySelf Propelled Sprayer packaging and loading display

Our other farm implements display

G series mini Orchard Tractor supporting farm implements display (1)G series mini Orchard Tractor supporting farm implements display (2)G series mini Orchard Tractor supporting farm implements display (3)G series mini Orchard Tractor supporting farm implements display


Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

Tractor production workshop display

tractor workshop

imageimage (1)Service

One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.

1) Market Service

Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified

2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training Service

Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;

4) Technical Support

The whole process Technology support covers on sale and after-sale service.

5) Terms of the deal:

1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:

Why choose us?

1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.

How Shipment?

We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?

A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers. Each machine is carefully tested before send to customer. Warranty time for 1 year or 1200 working hours.

How many units can be put in container?

A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
