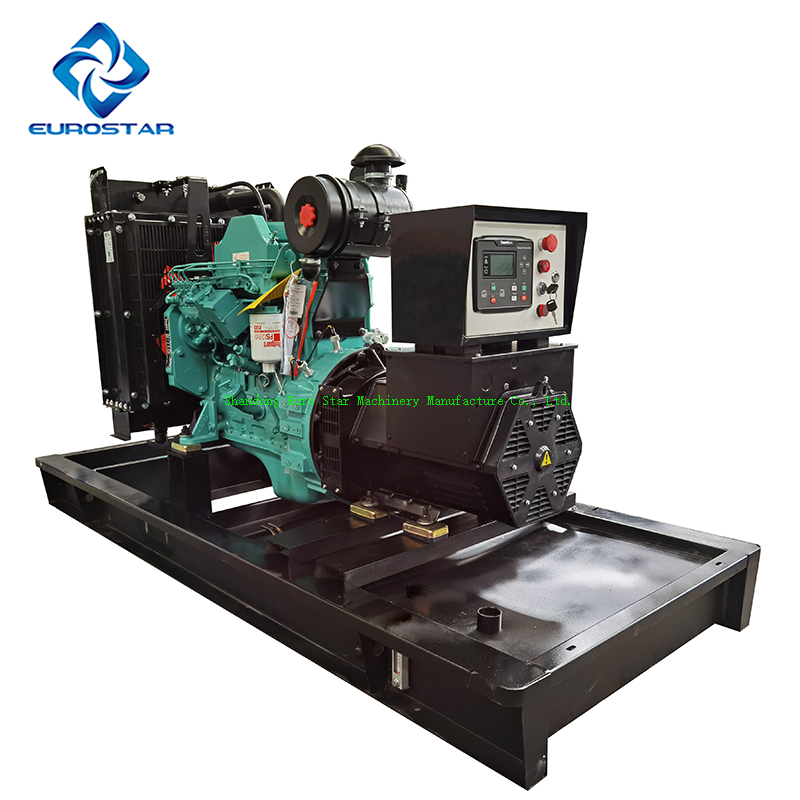

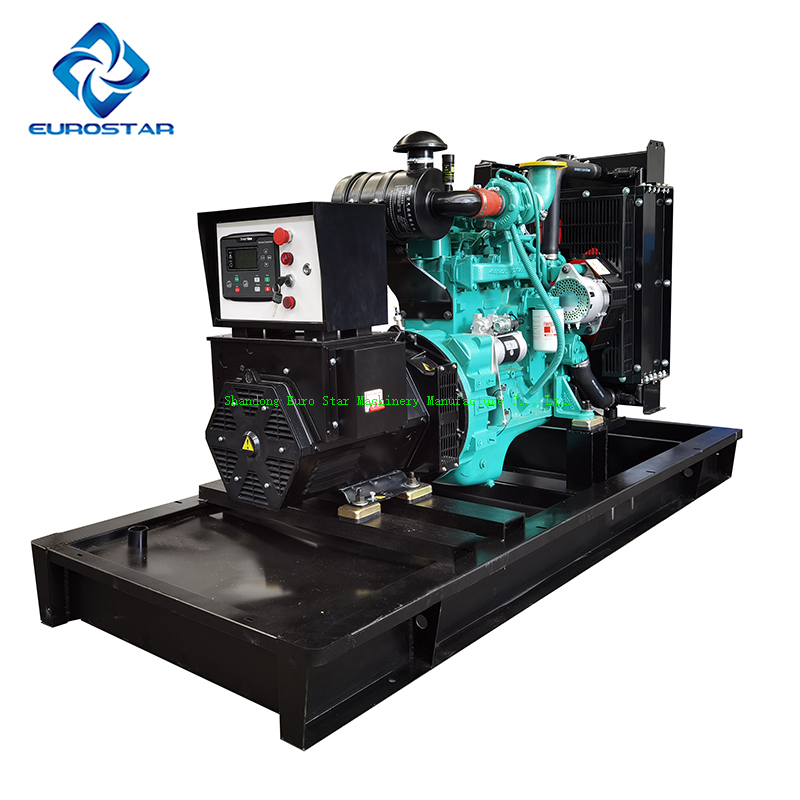

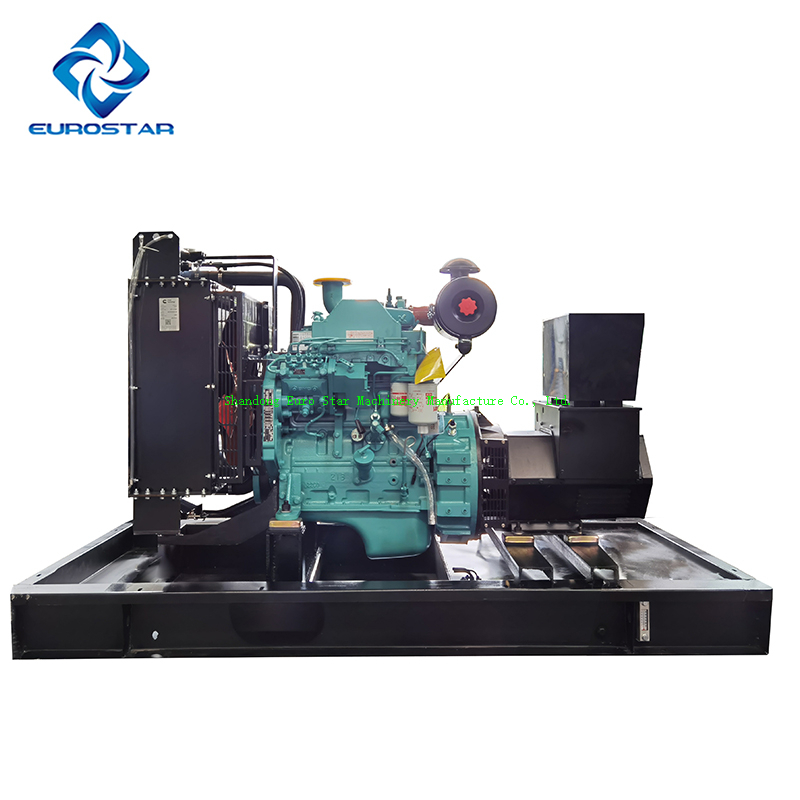

40kw 50kva Powered Super Silent Diesel Generator

We produce and export 8-2000kw diesel generator sets. Diesel generator sets are widely used in field construction, high-rise buildings, schools, hospitals, industrial and mining enterprises, farms, villages and other places where electricity is needed.
Availability:
Quantity:
  • YDNC-40

  • EUROSTAR or OEM

  • 8502110000

40kw 50kva Powered Super Silent Diesel Generator Product Description


1) Felxible -can be customerized according to customer's request, drawing will be submitted for approval. Such as taking off radiator and replacing with the heat exchanging system, total power solution such as gear box coupling and canopy design.

2) Durability- With Perkins engines technology have been engineered to meet the durability and performance needs of construction & engineering applications.

3) Long-Life Expectancy - these critical parts are manufactured by Perkins companies, other part comes from reliable manufacturers, these sets guarantee long functional life, outstanding performance, and high efficiency.

4) Easy availability of the spare parts -- the key parts are same as parts for Perkins diesel engine,better exchange and universality and durable.

5) Easy maintenance -Diesel engine not require heavy maintenance. It is very easy, safe, and simple to use. Well-planned and preventive maintenance measures are generally available for these sets which are also low in cost.


Silent Diesel Generator with Cummins Engine product technical parameter:

40kw 50kva diesel generator power from 4BTA3.9-G2 engine
GeneratorGenset ModelYDNC-40
Rated Frequency50Hz
Power Factor0.8
Rated Voltage230V/400V
Rated Power (KW/KVA)40kw/50kva
Standby Power (KW/KVA)44kw/55kva
Phase/Wire3Phase, 4Wire
Overall Size (mm)2000*750*1300
Weight (kg)850Kg
Diesel EngineModel4BTA3.9-G2
TypeWater-cooled, inline, 4-stroke, direct injection,wet cylinder liner, 1500rpm
Rated Power (kw)50
Intake TypeTurb
No. of Cylinder4.L
Bore×Stroke (mm)102×120
Lube Oil Capacity (L)11
Compression Ratio17.3:1
AlternatorModelFLD-40
Rated Power (KW/KVA)40/50
Excitation TypeBrushless
Insulation ClassH
Material100% pure copper
Voltage regulationAVR

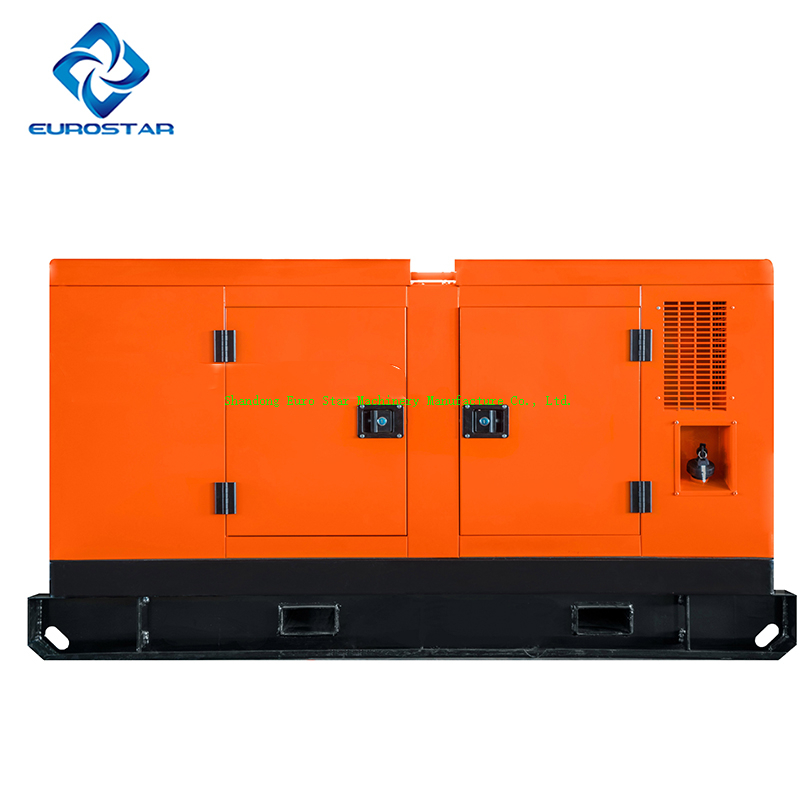

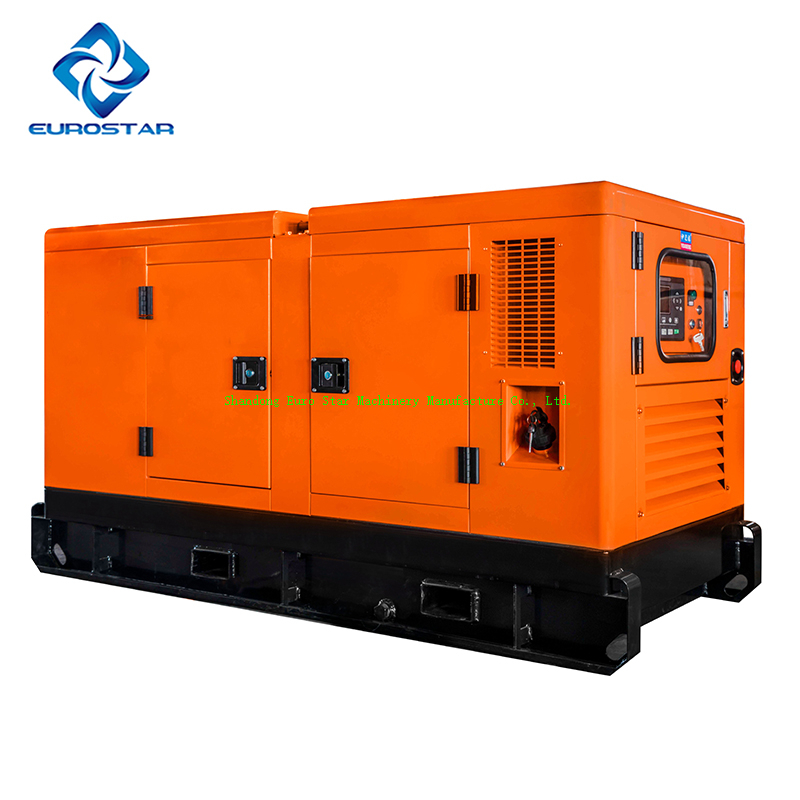

Silent Diesel Generator


微信图片_20220126140320


Silent 3 Phase Diesel Generator Details:



Customers visit:




Projects:


Mongolia 2013

GENSET MODEL:  ESC-800
PRIME POWER:     800KW/1000KVA

QUANTITY:             2 UNITS


One of the Road building company, they bought 2 set Container type 800kw Cummins diesel generator set with the KTA38-G2 model engine for their own project in 2013.After installed in the site and running for some years, they will very satisfied with our quality.So we become their supplier in their every project and build long term business relationship.

China-High-Quality-Silent-3-Phase-Diesel-Generator-Sale-Price-with-Cummins-Engine-20kw-800kw.webp (9)



Kazakhstan2017


GENSET MODEL:    ESW-400
PRIME POWER:      400KW/500KVA

QUANTITY:              2 UNITS


A big factory of producing the Chemical products, they need a standby power to produce the electricity when there is no electricity.we provide stable standby power for their factory.The generator set is power by Weichai diesel engine.Our customer spoke highly of our gensets and also appreciated our great service.

China-High-Quality-Silent-3-Phase-Diesel-Generator-Sale-Price-with-Cummins-Engine-20kw-800kw.webp (6)


Silent 3 Phase Diesel Generator Container Display:

China-High-Quality-Silent-3-Phase-Diesel-Generator-Sale-Price-with-Cummins-Engine-20kw-800kw.webp (7)


Certification:


Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.



Service

One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.

1) Market Service

Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified


2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training Service

Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;

4) Technical Support

The whole process Technology support covers on sale and after-sale service.

 5) Terms of the deal:

1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business


FAQ:

Why choose us?

1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How Shipment?

We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?

A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers. Each machine is carefully tested before send to customer. Warranty time for 1 year or 1200 working hours.

How many units can be put in container?

A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
