YDNV-150
EUROSTAR or OEM
8502110000

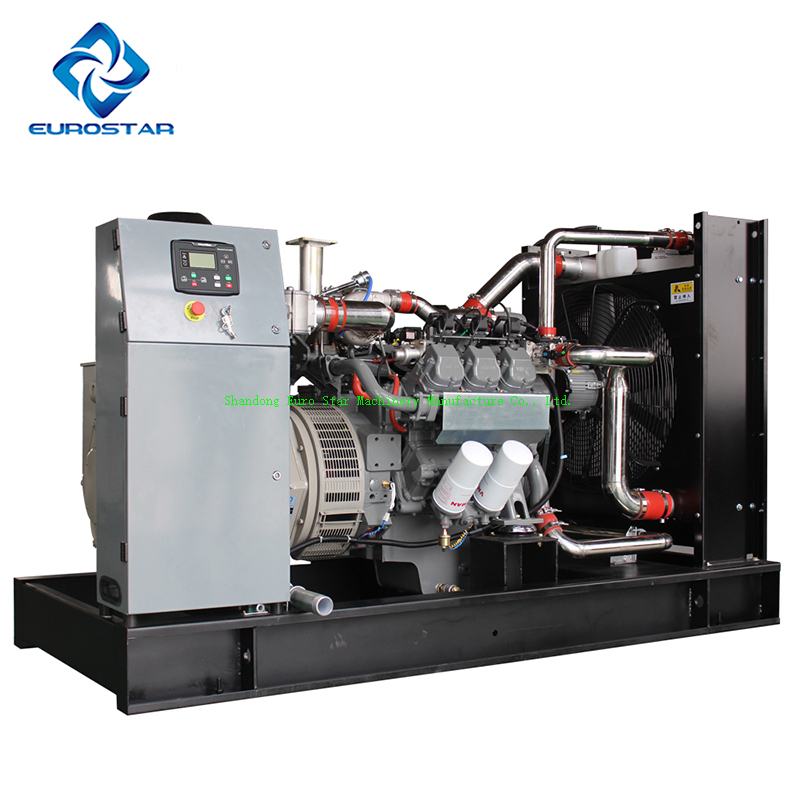

Garbage Power Plant Generator Product Description
1) Felxible -can be customerized according to customer's request, drawing will be submitted for approval. Such as taking off radiator and replacing with the heat exchanging system, total power solution such as gear box coupling and canopy design.
2) Durability- With Perkins engines technology have been engineered to meet the durability and performance needs of construction & engineering applications.
3) Long-Life Expectancy - these critical parts are manufactured by Perkins companies, other part comes from reliable manufacturers, these sets guarantee long functional life, outstanding performance, and high efficiency.
4) Easy availability of the spare parts -- the key parts are same as parts for Perkins diesel engine,better exchange and universality and durable.
5) Easy maintenance -Diesel engine not require heavy maintenance. It is very easy, safe, and simple to use. Well-planned and preventive maintenance measures are generally available for these sets which are also low in cost.
Garbage Power Plant Generator product technical parameter:
150KW Biogas Generator | ||
Genset Model | YDNV-150 | |
Rated Power(Kw/KVA) | 150/187.5 | |
Rated Current(A) | 270 | |
Dimension(mm)L*W*H | 2760*980*1600 | |
Gross Weight (kg) | 2040 | |
Engine | Model | DT11 |
Type | Water-cooled, 4-stroke, 6 cylinder V-line | |
Rated Power (kW/KVA) | 200/250 | |
Rated Speed(rpm) | 1500 | |
Cylinder No. | 6 | |
Bore*Stroke(mm) | 128×142 | |
Displacement(L) | 10.96 | |
Cooling Method | Water cooling | |
Oil Consumption (g/kw.h) | ≤1 | |
Rated Gas Consumption | 39.6 (m3/h)@100%Load | |
Starting method | 24V DC | |
Alternator | Brand | YDN |
Model | YDNA-150 | |
Rated Power (kW/KVA) | 150/187.5 | |
Efficiency | 92.50% | |
Voltage Regulation | <=±1 | |
Type | Brushless, Self Excitation | |
Insulation Class | H | |
Control System | Model | Smartgen HGM6110 |
Working Voltage | DC8.0V to DC35.0V, continuous | |
Overall Dimensions | 266mm x 182mm x 45mm | |
Panel Cutout | 214mm x 160mm | |
Working Condition | Temperature: (-25~70)ºC; Humidity: (20~90)% | |
Weight | 0.95kg |
Garbage Power Plant Generator Product Description
1) Felxible -can be customerized according to customer's request, drawing will be submitted for approval. Such as taking off radiator and replacing with the heat exchanging system, total power solution such as gear box coupling and canopy design.
2) Durability- With Perkins engines technology have been engineered to meet the durability and performance needs of construction & engineering applications.
3) Long-Life Expectancy - these critical parts are manufactured by Perkins companies, other part comes from reliable manufacturers, these sets guarantee long functional life, outstanding performance, and high efficiency.
4) Easy availability of the spare parts -- the key parts are same as parts for Perkins diesel engine,better exchange and universality and durable.
5) Easy maintenance -Diesel engine not require heavy maintenance. It is very easy, safe, and simple to use. Well-planned and preventive maintenance measures are generally available for these sets which are also low in cost.
Garbage Power Plant Generator product technical parameter:
150KW Biogas Generator | ||
Genset Model | YDNV-150 | |
Rated Power(Kw/KVA) | 150/187.5 | |
Rated Current(A) | 270 | |
Dimension(mm)L*W*H | 2760*980*1600 | |
Gross Weight (kg) | 2040 | |
Engine | Model | DT11 |
Type | Water-cooled, 4-stroke, 6 cylinder V-line | |
Rated Power (kW/KVA) | 200/250 | |
Rated Speed(rpm) | 1500 | |
Cylinder No. | 6 | |
Bore*Stroke(mm) | 128×142 | |
Displacement(L) | 10.96 | |
Cooling Method | Water cooling | |
Oil Consumption (g/kw.h) | ≤1 | |
Rated Gas Consumption | 39.6 (m3/h)@100%Load | |
Starting method | 24V DC | |
Alternator | Brand | YDN |
Model | YDNA-150 | |
Rated Power (kW/KVA) | 150/187.5 | |
Efficiency | 92.50% | |
Voltage Regulation | <=±1 | |
Type | Brushless, Self Excitation | |
Insulation Class | H | |
Control System | Model | Smartgen HGM6110 |
Working Voltage | DC8.0V to DC35.0V, continuous | |
Overall Dimensions | 266mm x 182mm x 45mm | |
Panel Cutout | 214mm x 160mm | |
Working Condition | Temperature: (-25~70)ºC; Humidity: (20~90)% | |
Weight | 0.95kg |
Biogas Engine Generator
Unlike a diesel generator set, the gas system of a gas generator set is very important.
And we use more high quality gas generator parts for you as following parts:
Mix gas and air for combustion we use USA Brand IMPCO.
E-Throttle is German Brand BOSCH.
Regulator is Italian Brand MADAS
Spark plug is Chinese famous brand TORCH
Water temperature Sensor also is BOSCH
And other high quality parts
Biogas Engine Generator Details:
Customers visit:
Projects:
QUANTITY: 2 UNITS
One of the Road building company, they bought 2 set Container type 800kw Cummins diesel generator set with the KTA38-G2 model engine for their own project in 2013.After installed in the site and running for some years, they will very satisfied with our quality.So we become their supplier in their every project and build long term business relationship.
QUANTITY: 2 UNITS
A big factory of producing the Chemical products, they need a standby power to produce the electricity when there is no electricity.we provide stable standby power for their factory.The generator set is power by Weichai diesel engine.Our customer spoke highly of our gensets and also appreciated our great service.
Production Process Quality Inspection:
In order to ensure that mini natural gas generator is 100% qualified, our factory has strict quality inspection process.
1).Strict inspection of all components
2).Strict inspection of AC Alternator, including AVR, copper wire, insulating varnish, silicon steel sheet.
3).Check gas engines, including cylinder heads, cylinders, superchargers, exhaust manifolds, etc.
4).Check gas engine electronic control circuit
5).Check the heat sink, radiator and radiator lines.
6).Check the ECU, the brain of the gas generator set.
7).Check the control module to ensure that the generator control system is operating properly.
Biogas Engine Generator Container Display:
Certification:
Biogas Engine Generator
Unlike a diesel generator set, the gas system of a gas generator set is very important.
And we use more high quality gas generator parts for you as following parts:
Mix gas and air for combustion we use USA Brand IMPCO.
E-Throttle is German Brand BOSCH.
Regulator is Italian Brand MADAS
Spark plug is Chinese famous brand TORCH
Water temperature Sensor also is BOSCH
And other high quality parts
Biogas Engine Generator Details:
Customers visit:
Projects:
QUANTITY: 2 UNITS
One of the Road building company, they bought 2 set Container type 800kw Cummins diesel generator set with the KTA38-G2 model engine for their own project in 2013.After installed in the site and running for some years, they will very satisfied with our quality.So we become their supplier in their every project and build long term business relationship.
QUANTITY: 2 UNITS
A big factory of producing the Chemical products, they need a standby power to produce the electricity when there is no electricity.we provide stable standby power for their factory.The generator set is power by Weichai diesel engine.Our customer spoke highly of our gensets and also appreciated our great service.
Production Process Quality Inspection:
In order to ensure that mini natural gas generator is 100% qualified, our factory has strict quality inspection process.
1).Strict inspection of all components
2).Strict inspection of AC Alternator, including AVR, copper wire, insulating varnish, silicon steel sheet.
3).Check gas engines, including cylinder heads, cylinders, superchargers, exhaust manifolds, etc.
4).Check gas engine electronic control circuit
5).Check the heat sink, radiator and radiator lines.
6).Check the ECU, the brain of the gas generator set.
7).Check the control module to ensure that the generator control system is operating properly.
Biogas Engine Generator Container Display:
Certification:
