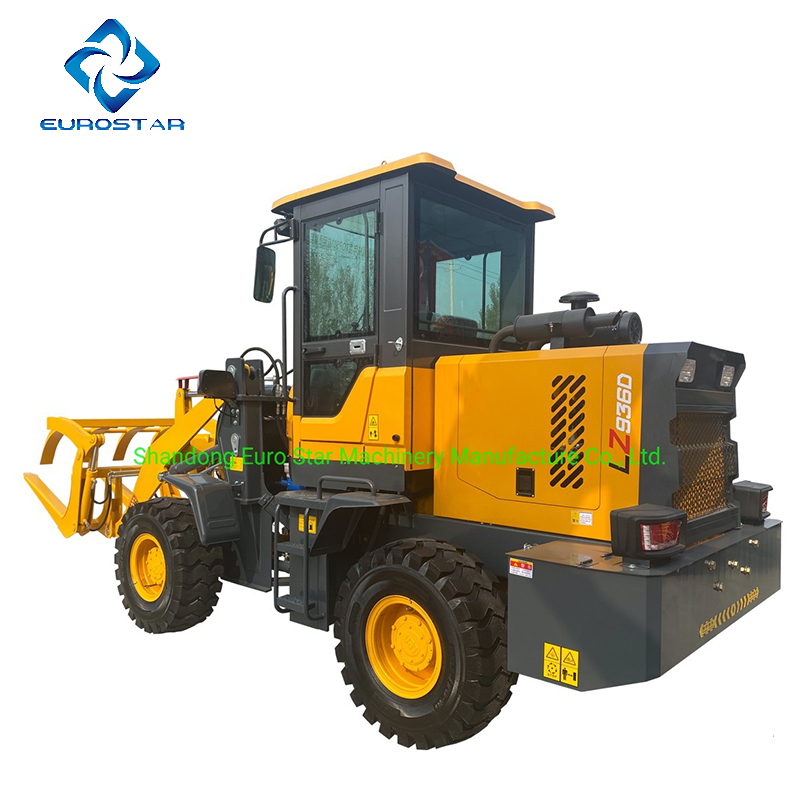

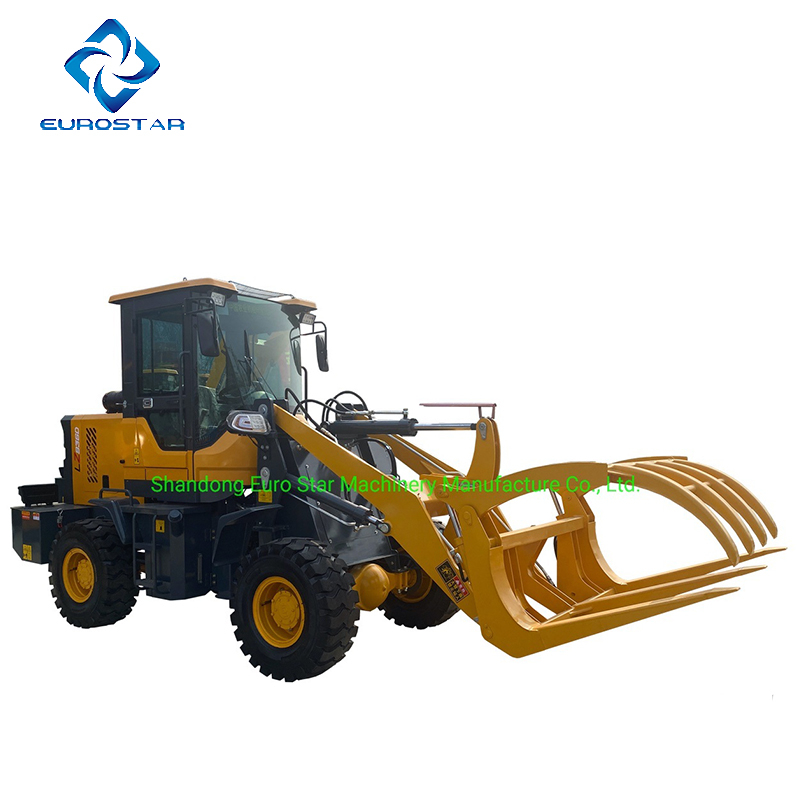

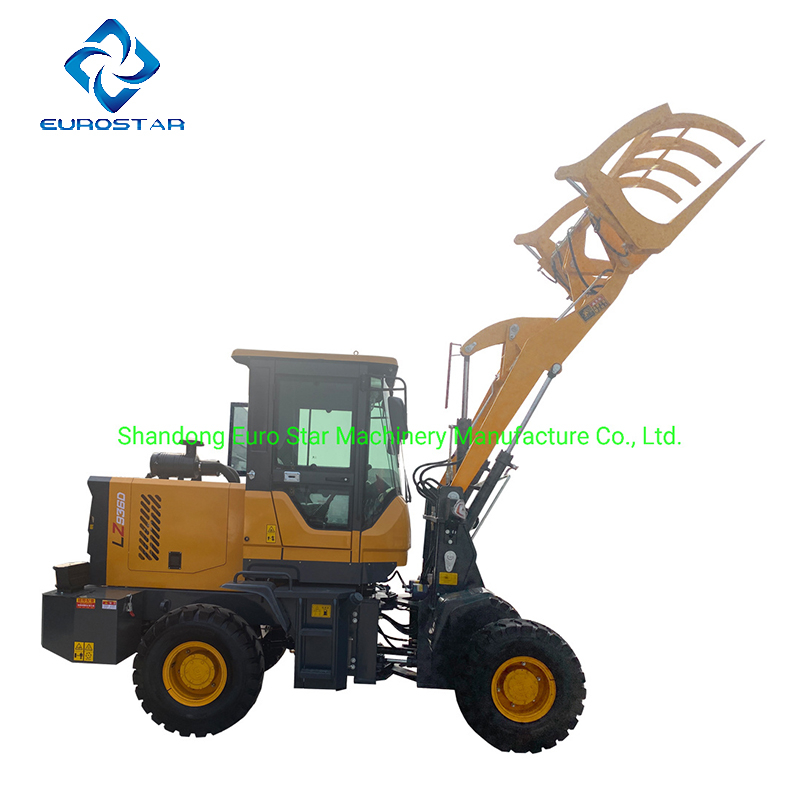

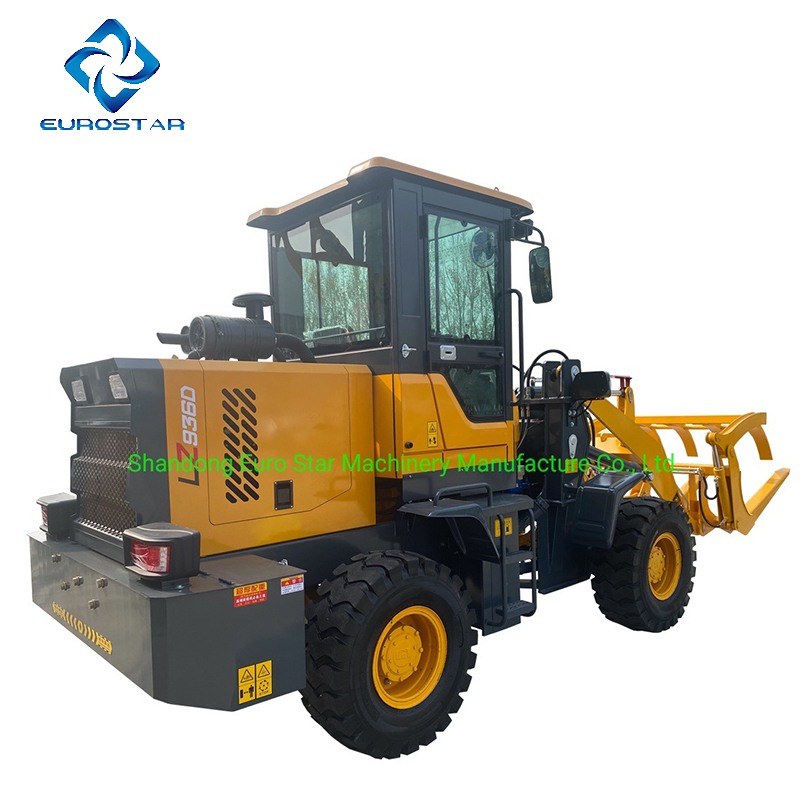

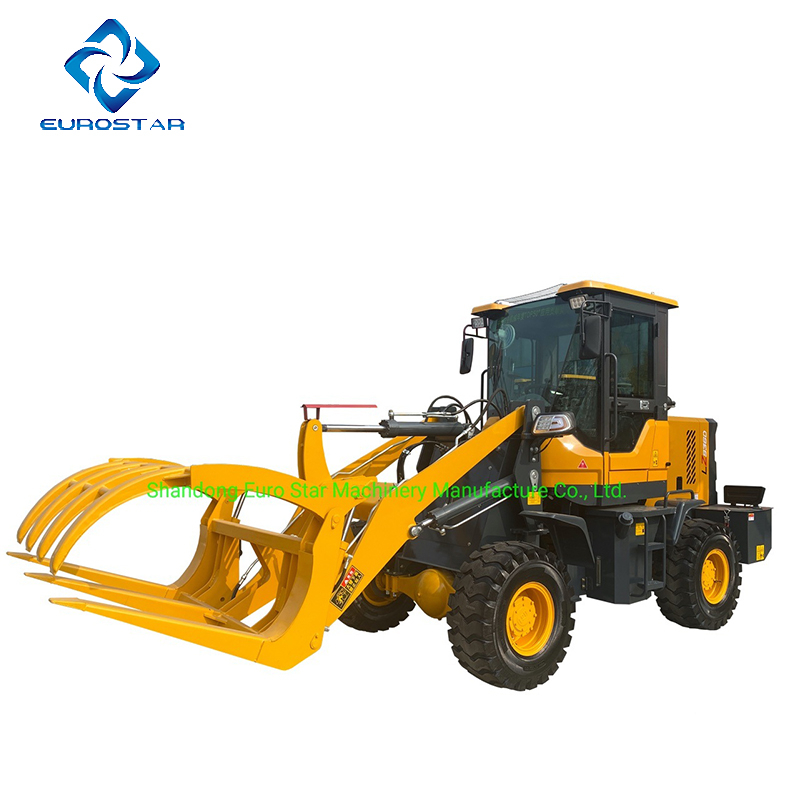

1.6t Mini Wheel Loader for farm work

EZ936 Wheel loader
Wheel Loader is a kind of earthwork construction machinery widely used in highway,railway,construction,hydropower,port,mine and other construction projects.It is mainly used for shoveling bulk materials such as soil,sand,lime,coal etc.It can also be used for slight shoveling and excavation of ores,hard soil etc.Different auxuliary devices can also be used for bulldozing,lifting,loading and unloading of other materials.
EZ936 is a long-wheelbase loader designed by with a next generation of apperaance, and combines the energy-saving, reliability and comfort.It has the superior stability and large breakout force, and by virtue of the superior comperehensive prrformance, it is more suitable for mining and other heavy-duty operations.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
  • EZ936/1.6T

  • EUROSTAR OEM

  • 84295100

EZ936 Wheel loader Product Description

Wheel Loader is a kind of earthwork construction machinery widely used in highway,railway,construction,hydropower,port,mine and other construction projects.It is mainly used for shoveling bulk materials such as soil,sand,lime,coal etc.It can also be used for slight shoveling and excavation of ores,hard soil etc.Different auxuliary devices can also be used for bulldozing,lifting,loading and unloading of other materials.
EZ936 is a long-wheelbase loader designed by with a next generation of apperaance, and combines the energy-saving, reliability and comfort.It has the superior stability and large breakout force, and by virtue of the superior comperehensive prrformance, it is more suitable for mining and other heavy-duty operations.

Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.

EZ936 Wheel loader Product Selling Points
1. Operator Comfort and Safety
2. Adjustable seat, and ergonomically designed placement of instruments.
3. Comfortable A/C and heated operator environment.Two mechanical lever controls.
4. Optional pilot control.Convenient detachable cab.
5. UV resistance glass. Cigarette lighter works as electrical outlet.
6. Easy to Maintain
7. Power cut-off function prevents damage to drive components.
8. Double sealed O-rings used in Hydraulic system.
9. Stress analysis tested to strengthen weak points.
10. Sub frame and rear axle swingable by 11 degrees .
11. Front frame box structure highly torsion and damage resistant.
12. Parts, Attachments and Service to count on.
13. World class suppliers of key components.
14. Long life high performance multi valve from  Zhejiang Linhai.
15. Long life highly efficient Shantui transmission and converter used.
16. Performance  Reliable
17. Hydraulic system easily checked after removing front cover.
18. Easy engine access, convenient placement of key parts and fluid refill points.
19. Built for Efficiency
20 Turbo air filter removes over 90% of dust and impurities, reducing  engine wear and fuel consumption extending engine service life and improving engine efficiency.
21. Radiator fan is directly engine driven and provides strong  efficient cooling.
22. 38 degree angle of articulation for working in tight spaces.
23. Low fuel consumption engine that doesn't sacrifice any power.
24. Very low cycle time of 8.6 second, great for efficient  for smooth strong gear changes.
25. Meets EU stage II/EPA tier 2 emission requirements.

EZ Series Wheel loader product technical parameters

EZ936 / 1.6TEZ938 / 1.8TEZ952 / 2.0T
ModelEZ936D1-K/1.6TEZ936D2-K/1.6TEZ936D3-K/1.6TEZ936G-EK/1.6TEZ938D1-K/1.8TEZ938D2-K/1.8TEZ938D3-K/1.8TEZ952D1/2.0TEZ952D2/2.0TEZ952D3/2.0TEZ952D4/2.0T
Rated Load1600 kg1600 kg1600 kg1600 kg1800 kg1800 kg1800 kg2000 kg2000 kg2000 kg2000 kg
Total Weight3700 kg3900 kg4000 kg3600 kg4020 kg4220 kg4320 kg5230 kg5230 kg5230 kg5230 kg
Bucket capacity0.55  m³0.55  m³0.55  m³0.55  m³0.55  m³0.55  m³0.55  m³0.78  m³0.78  m³0.78  m³0.78  m³
Bucket width1800 mm1800 mm1800 mm1800 mm1830 mm1830 mm1830 mm2020 mm2020 mm2020 mm2020 mm
size(L×W×H)mm5450*1890*26605450*1890*26605450*1890*26605450*1890*26605750*1890*26605750*1890*26605750*1890*26606270*1960*26906270*1960*26906270*1960*26906270*1960*2690
wheel base1470mm1470mm1470mm1470mm1470 mm1470 mm1470 mm1560mm1560mm1560mm1560mm
Axle spacing2250mm2250mm2250mm2250mm2300 mm2300 mm2300 mm2445mm2445mm2445mm2445mm
Max.unloading height3200 mm3500 mm4200 mm3200 mm3500 mm4200 mm4500 mm3500 mm3900 mm4200 mm4500 mm
Min.turning radius4400 mm4400 mm4400 mm4400 mm4500 mm4500 mm4500 mm4900 mm4900 mm4900 mm4900 mm
Mini.ground clearance260 mm260 mm260 mm260 mm260 mm260 mm260 mm320 mm320 mm320 mm320 mm
Boom lift6.5 S6.5 S6.5 S6.5 S4.67 S4.67 S4.67 S5.55 S5.55 S5.55 S5.55 S
Boom down4.62 S4.62 S4.62 S4.62 S2.84 S2.84 S2.84 S4.74 S4.74 S4.74 S4.74 S
Trinomial sum10.89 S10.89 S10.89 S10.89 S9.23 S9.23 S9.23 S10.83 S10.83 S10.83 S10.83 S
Driving speedLow I (F/R)5 km/h5 km/h5 km/h5 km/h5 km/h5 km/h5 km/h6.5 km/h6.5 km/h6.5 km/h6.5 km/h
Low II (F/R)8.5 km/h8.5 km/h8.5 km/h8.5 km/h8.5 km/h8.5 km/h8.5 km/h11 km/h11 km/h11 km/h11 km/h
High I (F/R)18 km/h18 km/h18 km/h18 km/h18 km/h18 km/h18 km/h21 km/h21 km/h21 km/h21 km/h
High II (F/R)27 km/h27 km/h27 km/h27 km/h27 km/h27 km/h27 km/h35 km/h35 km/h35 km/h35 km/h
EngineModelQUANCHAI 4BZ-52M22QUANCHAI 4BZ-52M22QUANCHAI 4BZ-52M22QUANCHAI 4BZ-52M22YUNNEI RAS010FYUNNEI RAS010FYUNNEI RAS010FQUANCHAI416-88M22QUANCHAI416-88M22QUANCHAI416-88M22QUANCHAI416-88M22
Rated power36.8 kW36.8 kW36.8 kW36.8 kW58.8 kW58.8 kW58.8 kW74 kW74 kW74 kW74 kW
Rated speed24002400240024002400240024002400240024002400
Emission StandardsII stages Europe IIII stages Europe IIII stages Europe IIII stages Europe IIII stages Europe IIII stages Europe IIII stages Europe IIII stages Europe IIII stages Europe IIII stages Europe IIII stages Europe II
one 40HC containers can shipped 3 setsone 40HC containers can shipped 3 setsone 40HC containers can shipped 3 sets


EZ Series Wheel loader details picture displayEZ Series Wheel Loader

EZ Series Wheel Loader 反面2EZ936 wheel Loader details2Showcase of Eurostar loaders1000

Wheel loader supporting installation Attachments displayWheel loader supporting installation attachments display (1)

Wheel loader supporting installation Attachments display1

Wheel loader supporting installation Attachments display-1

Wheel loader supporting installation Attachments display-2

Wheel loader Packaging and shipping display

EZ series loader packaging

Wheel loader Packaging and shipping display

EZ Series 1.0T Wheel Loader


Model EZ928D1-K/1.0T EZ928D2-K/1.0T
Rated contained mass  1000 kg 1000 kg
Total Weight    2700 kg 2800 kg
Bucket capacity 0.38  m³ 0.38  m³
Bucket width 1500 mm 1500 mm
size(L×W×H) 4950*1500*2500mm 4950*1500*2500mm
wheel base 1300mm 1300mm
Axle spacing  1935mm 1935mm
Max.unloading height 2400 mm 2800 mm
Min.turning radius 3900 mm 3900 mm
Mini.ground clearance 240 mm 240 mm
Driving speed Low I (F/R) 5 km/h 5 km/h
Low II (F/R) 8.5 km/h 8.5 km/h
High I (F/R) 18 km/h 18 km/h
High II (F/R) 27 km/h 27 km/h
Engine Model QUANCHAI 4BZ-52M22 QUANCHAI 4BZ-52M22
Rated power 36.8 kW 36.8 kW
Rated speed 2400 2400
Emission Standards II stages Europe II II stages Europe II
40HC containers can be shipped 3 3
Optional equipment without cab,With safety frame and awning

EZ938D 1.0T loader


LZ series Euro V wheel loader product technical parameter

Model LZ912F LZ908F
Rated Contained Mass (kg) 1200 800 kg
Total Weight (kg) 3720 2460 kg
Axle Type Small Wheel Side Bridge Isuz u
Transmission Type 265 Torque Converter 265 Torque Converter
High and Low Speed Power Shift Transmission Power Shift Transmission
Operate Mode Mechanical Pilot Mechanical Pilot
Brake Type Air Brake Air Brake
Bucket Capacity ( m³) 0.5 0.4
Bucket Width (mm) 1750 1500
Dimension (mm x mm x mm) 5650x1820x2750 4530x1560x2510
Wheelbase (mm) 1490 1200
Axle Spacing (mm) 2100 1880
Max.Unloading Height (mm) 3200 2100
Min. Turning Radius (mm) 4420 4760
Mini. Ground Clearance (mm) 250 240
Unloading Distance (mm) 940 840
Tires Size 20.5/70-16 31×15.5-15
Boom Lift (s) 5.15 3.26
Boom Down (s) 3.12 2.42
Trinomial Sum (s) 9.24 6.36
Driving Speed Low I (F/R)  (km/h) 5.5 7.1
Low II(F/R)  (km/h) 10
High I (F/R)  (km/h) 18 19.8
High II (F/R)  (km/h) 29
Engine Model Xin Chai 3E22YT Xin Chai 3B11X51
Rated Power (kW) 44.8 18.5
Rated Speed (rpm) 2300-2400 2400-3000
Emission Standards European Emission V European Emission V
Displacement (L) 2.2 1.12
Production Period 30 days
Optional Warm Wind Cabin Warm Wind Cabin
Yun Nei  Brand Euro V 36.8 KW Engine Yun Nei Brand Euro V 29.5 KW Engine
Yun Nei  Brand Euro V 45 KW Engine Yun Nei Brand Euro V 36.8 KW Engine
Bucket quick change device Bucket Quick Change Device

Tires Size 20.5/70-16
Mode of Stuffing 3 sets in 40' container: Only remove bucket and tire, install iron process wheel
4sets in 40'high container/ 6sets in 45'high container:  Remove the bridge, boom, bucket, counterweight, oil tank, etc
LZ series Euro V wheel loader  display LZ Euro V Loader LZ series Euro V wheel loader details picture displayEuro V loader- details showing-2

Euro V loader- details showing-1Euro V loader- details showingOther construction machinery products

Other construction machinery products1

Other construction machinery products2

Rubber track small excavator product display

Rubber track small excavator product display

Metal crawler small excavator product display

Metal crawler small excavator product display

Metal crawler small excavator product display-1



Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

Factory and production equipment display

workshop of loader-1Shandong-Euro-Star-Machinery-Manufacture-Co-Ltd-Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.

1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified

2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;

4) Technical Support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.

How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?

A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.

How many units can be put in container?

A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
